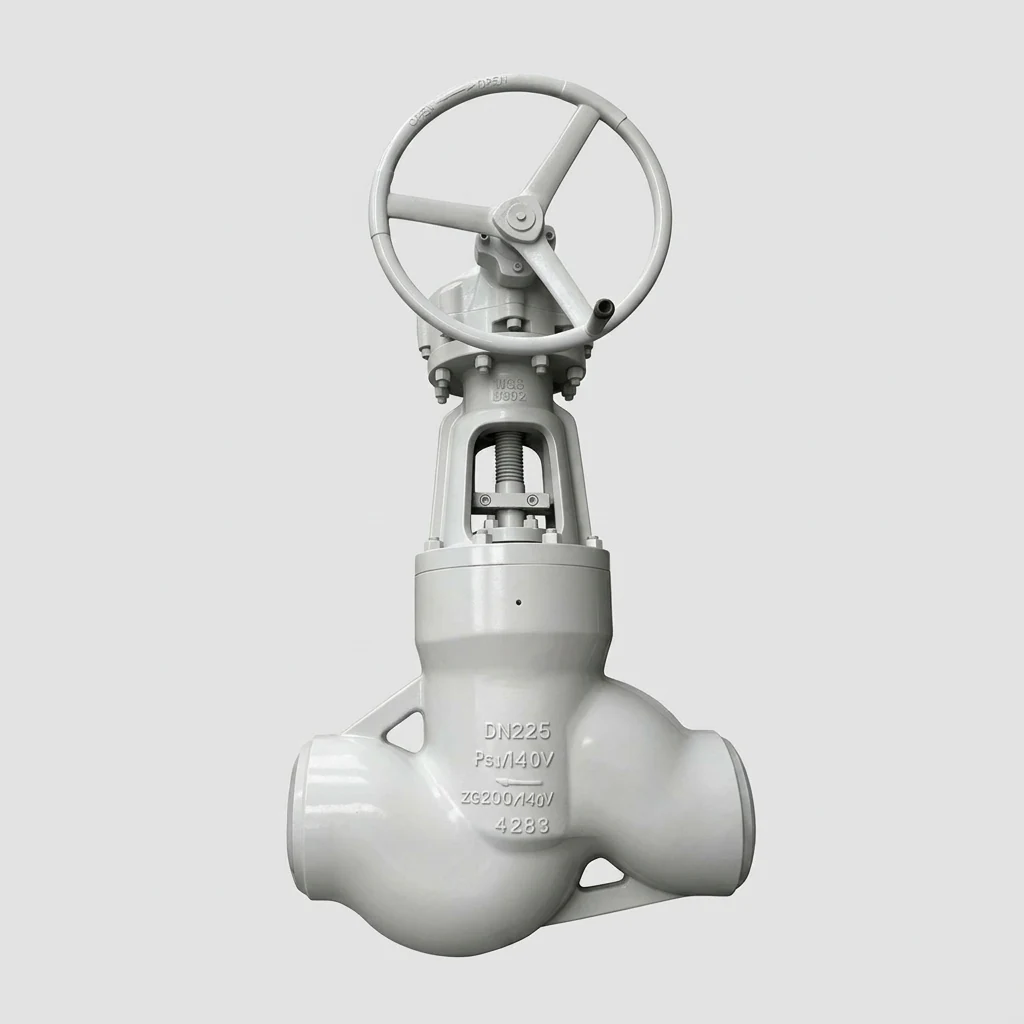

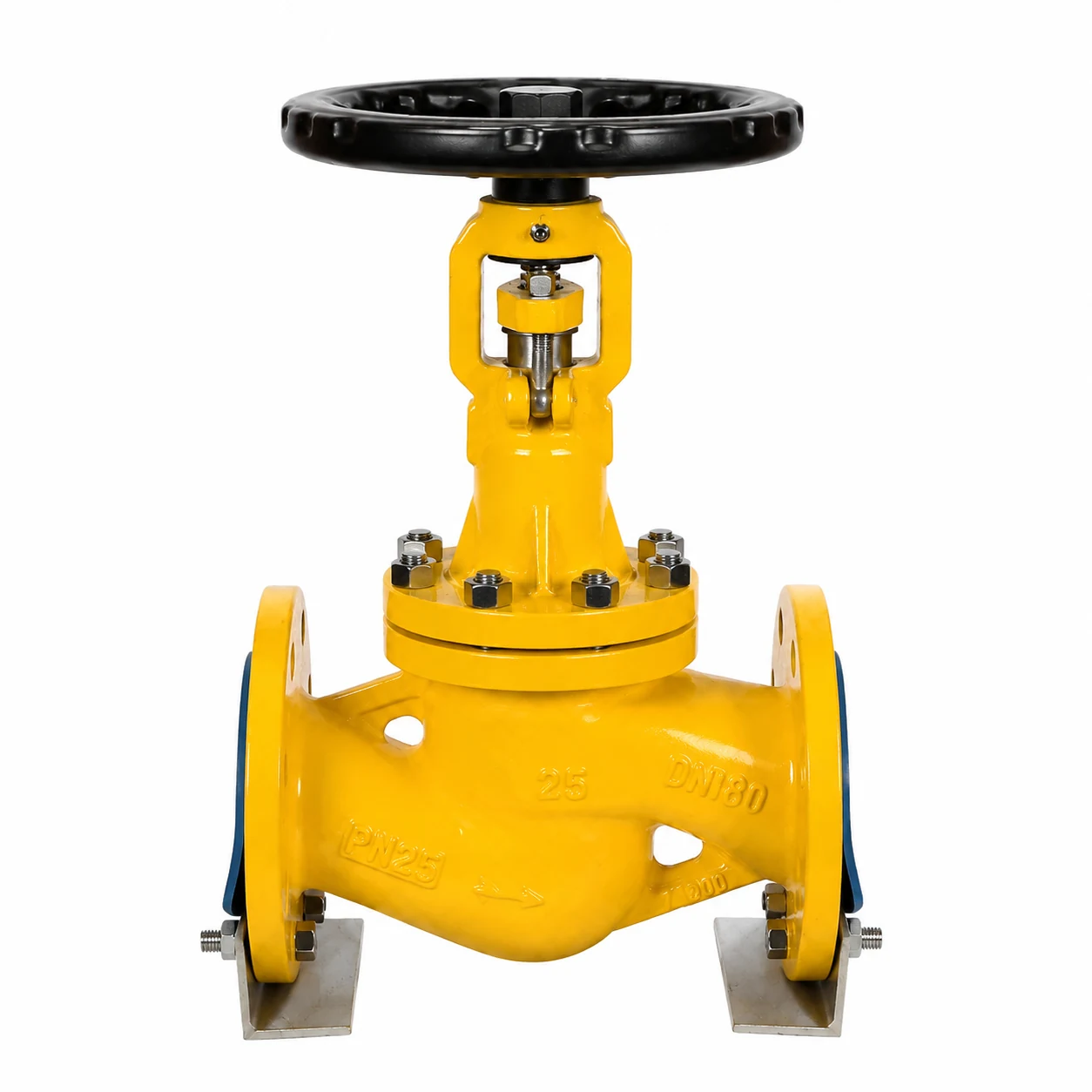

API Cast Steel Globe Valve HN102

Product Overview

The HN102 API Cast Steel Globe Valve is designed for shut-off and selected throttling service in ANSI pipeline systems. The globe valve body pattern provides a guided disc and seat arrangement suitable for controlled flow regulation, isolation and pressure-containing industrial service.

This valve series is suitable for oil, gas, steam, water, petrochemical, refinery, power plant and general industrial pipeline applications where API and ASME specifications are required. Available pressure classes include Class 150, 300, 600, 900, 1500 and 2500, with size availability depending on pressure class and selected end connection.

HN102 can be supplied with raised face, butt-welded or ring type joint end configurations according to pressure class, piping design and project specification. Material options include carbon steel, Cr-Mo alloy steel and low-temperature carbon steel grades.

Key Features

• API cast steel globe valve for ANSI shut-off and throttling service.
• Globe valve flow path for controlled regulation and isolation.
• Rising stem structure for valve position indication.
• Bolted bonnet construction for standard cast steel configurations.
• Guided disc and renewable seat arrangement, depending on project requirements.
• RF, BW and RTJ end options depending on pressure class.
• Available in Class 150, 300, 600, 900, 1500 and 2500 configurations.
• Suitable for oil, gas, steam, water, petrochemical, refinery and power plant pipelines.

Sectional Structure and Materials

The numbered sectional drawing corresponds to the position numbers in the materials table. Final material selection should be confirmed according to pressure class, working temperature and medium compatibility.

Pos.	Parts Name	Carbon Steel	1 1/4Cr-1/2Mo	Low Temp Carbon Steel
1	Body	A216-WCB	A217-WC6	A352-LCB
2	Bonnet	A216-WCB	A217-WC6	A352-LCB
3	Disc	A105+CR13	A182-F11+HF	A350-LF2+CR13
4	Stem	A182-F6a	Cr-Mo-V	A182-F6a
5	Seat	A105+CR13	A182-F11+HF	A350-LF2+CR13
6	Upper sealing seat	A276-420	A276-304	A276-420
7	Bonnet gasket	Winding gasket 304	304SS	Steel ring
8	Bonnet bolt	A193-B7	A193-B16	A320-L7
9	Bonnet nut	A194-2H	A194-7	A194-4
10	Packing	Graphite	Graphite	Graphite
11	Packing pressure jacket	A276-420	A276-304	A276-420
12	Packing gland	A216-WCB	A217-WC6	A352-LCB
13	Live bolt pin	Carbon steel	A276-420	Carbon steel
14	Live bolt	Carbon steel	A193-B7	Carbon steel
15	Live nut	Carbon steel	A194-2H	Carbon steel
16	Stem nut	Aluminium bronze	Aluminium bronze	Aluminium bronze
17	Handwheel	Malleable iron	Malleable iron	Malleable iron

Alternative materials may be selected according to medium, temperature and project specification. Disc and seat surface material should be confirmed according to pressure class and service conditions.

Technical Specifications

Dimensions and Performance Data

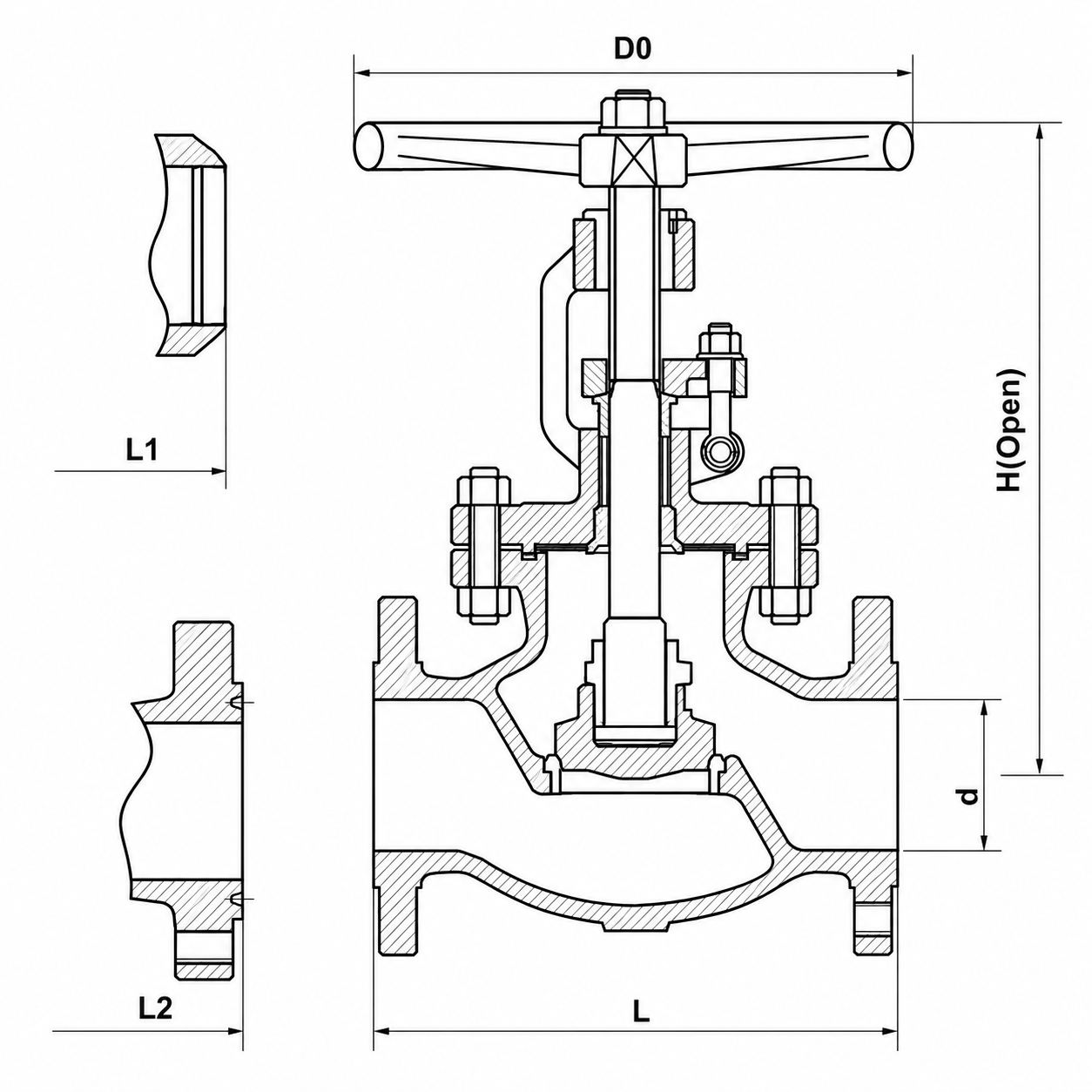

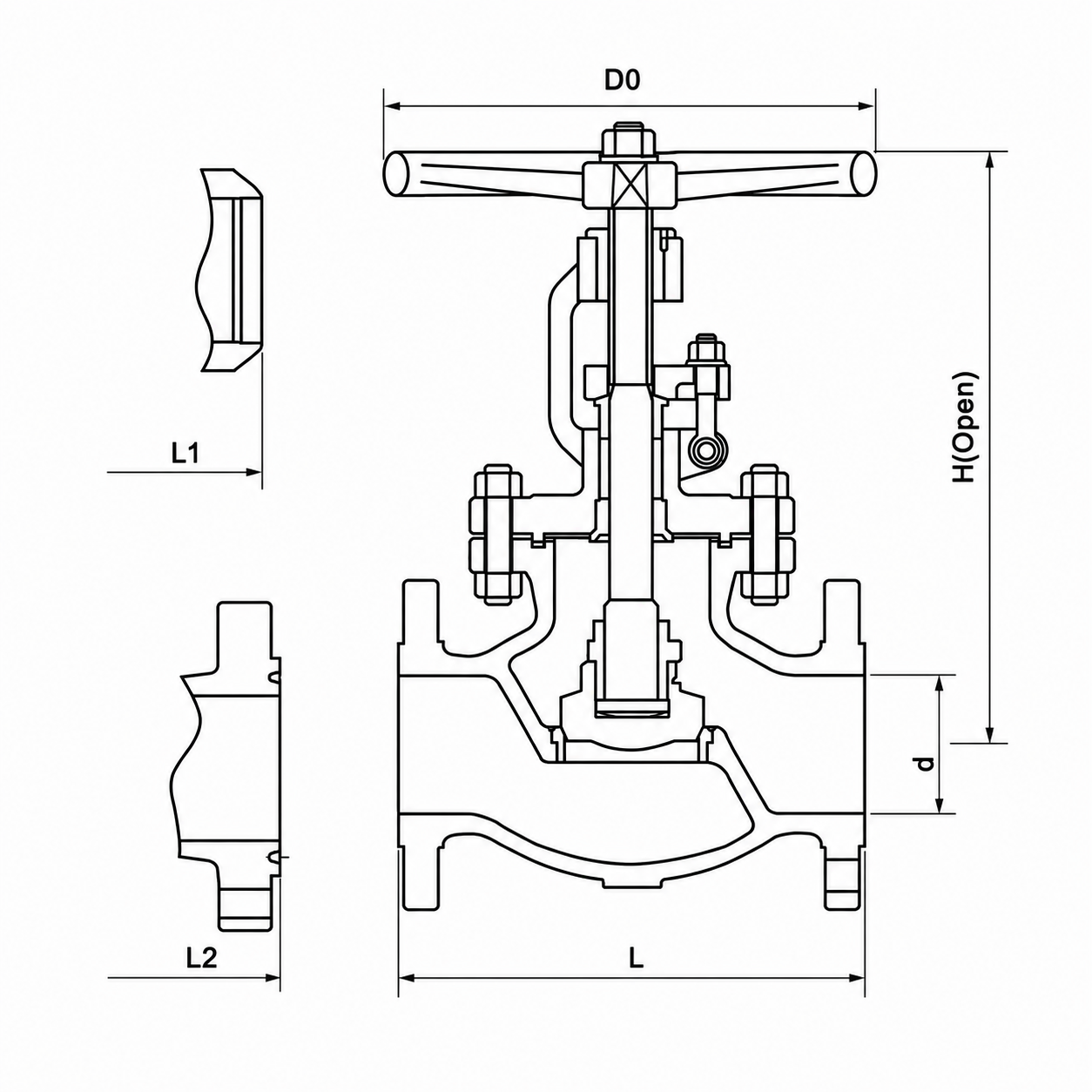

The drawings show the dimensional symbols used in the tables below. Values are catalog reference data for preliminary selection and should be confirmed against the approved drawing before order.

Some dimensions vary by pressure class, end connection and approved drawing. Final Open H and handwheel dimensions should be confirmed before order.

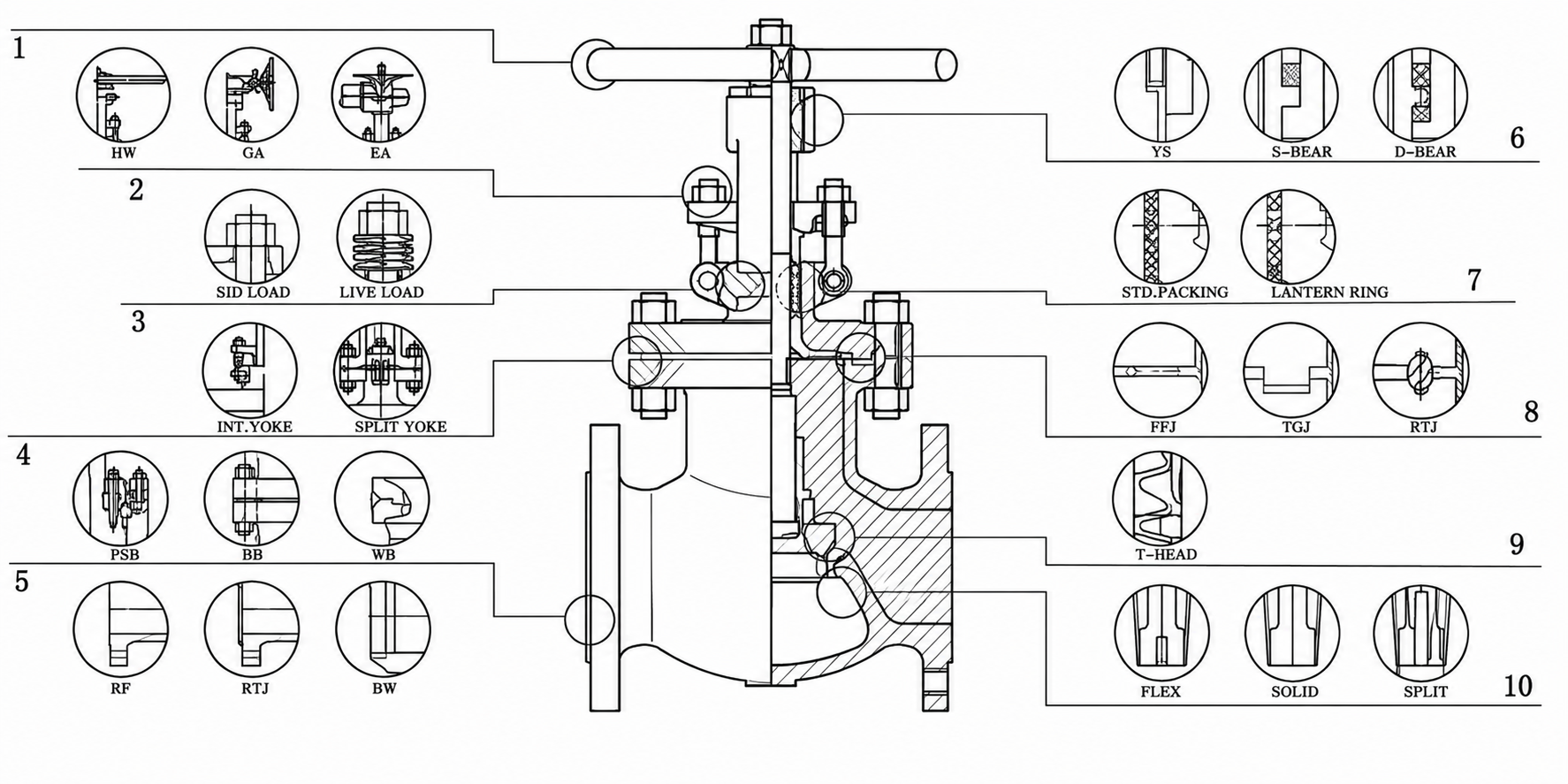

Design and Construction Options

Available design and construction options may include handwheel, gear operation, electric actuator, pneumatic actuator, hydraulic actuator, handwheel extension, packing and gasket changes, pressure adjustment, special casting requirements, oxygen and chlorine cleaning, flange connection changes and bore quantity changes according to project requirements.

For project quotations, final construction details should be confirmed against pressure class, line size, medium, end connection and approved drawings.

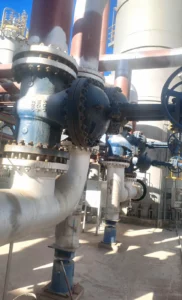

Applications

• Oil and gas pipeline shut-off and throttling service
• Petrochemical and refinery process lines
• Power plant steam and auxiliary systems
• General ANSI industrial pipelines
• Water, steam, oil and compatible gas service
• Pipeline systems requiring API or ASME globe valve specifications

Standards and Compliance

• Design reference: BS 1873 / ANSI B16.34, ASME B16.34
• Pressure-temperature reference: ASME B16.34
• Face-to-face / end-to-end reference: ASME B16.10
• Flange reference: ASME B16.5
• Butt-weld end reference: ASME B16.25
• Test and inspection reference: API 598

Technical data is based on catalog reference information. Final dimensions, material grades and end connections should be confirmed according to project specification and approved drawings.

Frequently Asked Questions

For a detailed comparison of gate valve and globe valve applications, see our API gate valve vs API globe valve comparison.

What is HN102 mainly used for?

HN102 is mainly used for shut-off and selected throttling service in ANSI pipeline systems, including oil, gas, steam, petrochemical, refinery, power and general industrial applications.

What pressure classes are available?

The catalog reference covers Class 150, 300, 600, 900, 1500 and 2500. The available size range depends on the selected pressure class and end connection.

Can HN102 be supplied with RF, BW or RTJ ends?

Yes. Raised face, butt-welded and ring type joint end configurations may be selected according to pressure class, piping design and project specification.

For selection guidance between API globe valve and pressure seal globe valve bonnet designs, read our API globe valve vs pressure seal globe valve selection guide.
