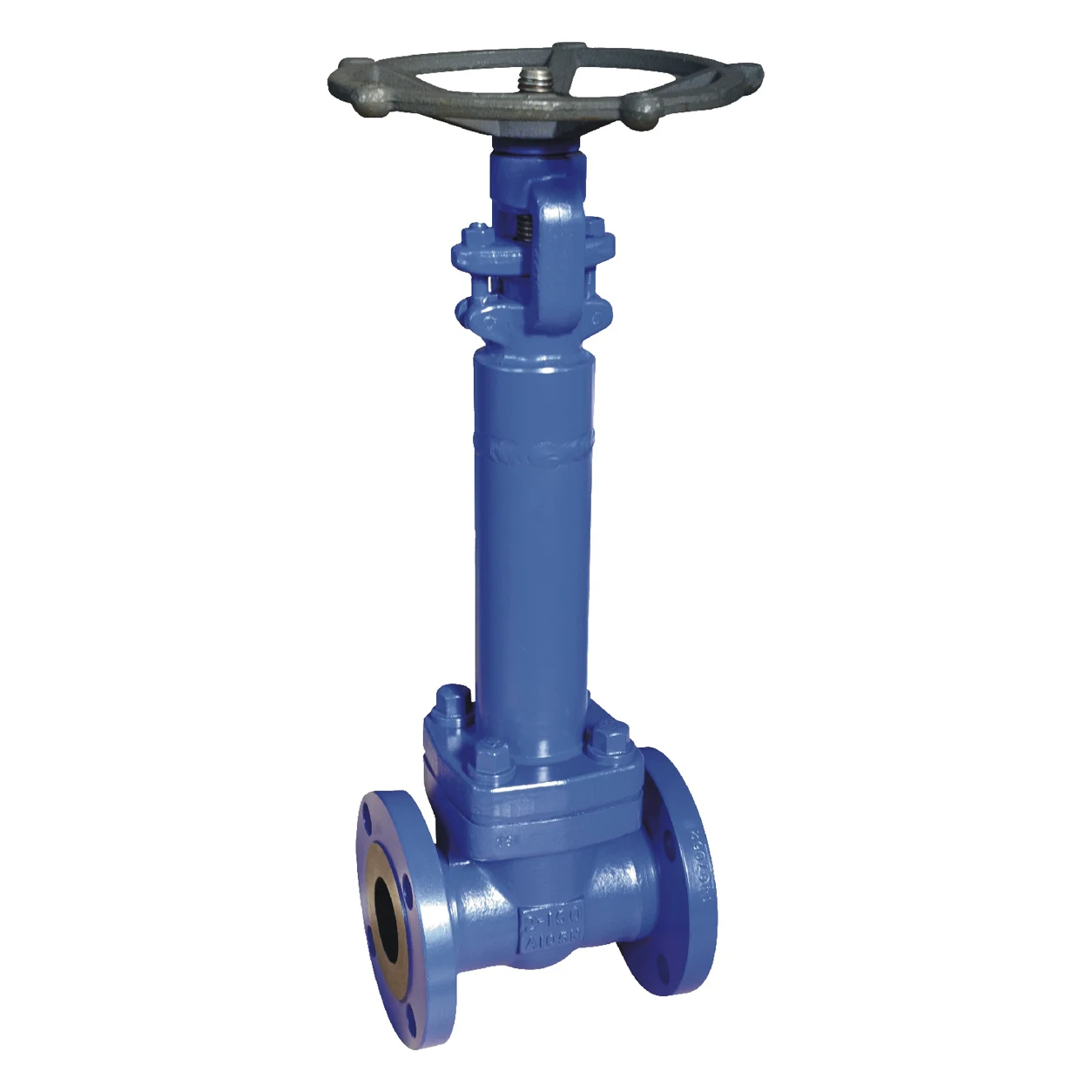

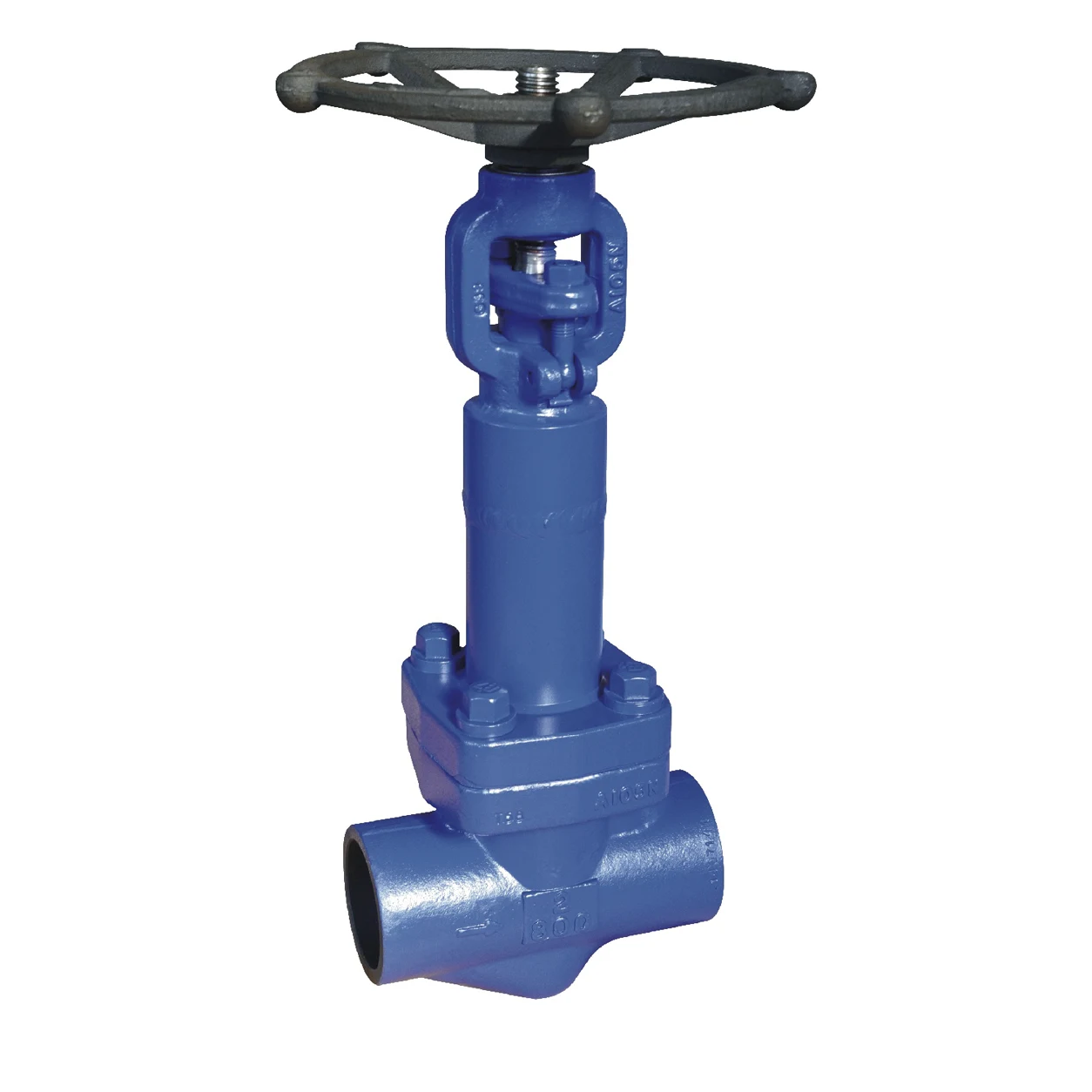

Product Overview
The HN69 Forged Steel Bellow Seal Globe/Gate Valve ANSI series is designed for compact high-pressure industrial pipeline applications where stem sealing reliability is important. The forged steel construction is suitable for small-bore ANSI valve requirements, while the bellow seal assembly helps reduce stem leakage risk compared with packing-only designs.
HN69 covers both globe valve and gate valve configurations within the same forged bellow seal product family. It is available from 1/2 inch to 3 inch, with Class 150 to Class 1500 pressure ratings. Connection options include butt-welded, socket-welded, threaded NPT and flanged configurations according to project requirements.
Typical applications include steam service, thermal oil systems, power engineering, chemical and petrochemical service, gas service and selected compatible industrial fluids. Final valve type, connection, pressure class, material grade and trim should be confirmed during quotation and drawing approval.
Key Features
- Forged steel bellow seal globe/gate valve series for ANSI projects.
- Covers 1/2 inch to 3 inch sizes and Class 150 to Class 1500 ratings.
- Available as globe valve or gate valve configuration according to project requirements.
- BW, SW, NPT and flanged connection options.
- Bellow seal assembly helps reduce stem leakage risk in compatible service.
- Compact forged steel construction for small-bore high-pressure applications.
- Rising stem and non-rotating stem arrangement according to catalog construction.
- Handwheel operation standard; electric actuator option can be discussed for project requirements.
Sectional Structure and Materials

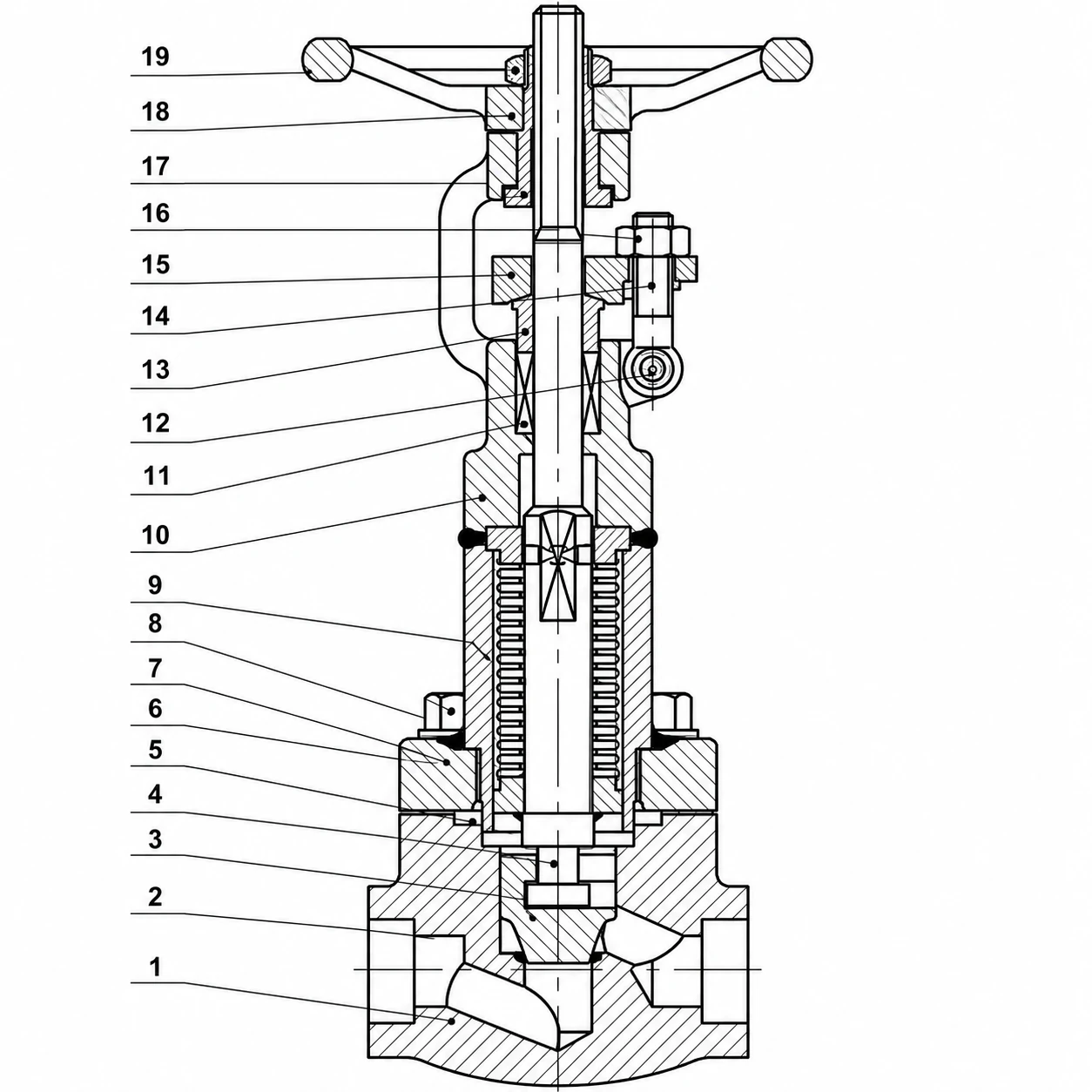

The numbered sectional drawing corresponds to the position numbers in the materials table. Final material selection should be confirmed according to pressure class, temperature, media and project specification.
| Pos. | Name | Typical Material Options |
|---|---|---|
| 1 | Body | ASTM A105; A182 F304; A182 F316; A182 F11 |
| 2 | Seat | 13Cr, STL6 |
| 3 | Disc | ANSI 410 + QT; F304; F316 |
| 4 | Bellows | SS304, SS316L |
| 5 | Gasket | Graphite + SS304 |
| 6 | Stem | ANSI 410; A182 F304; A182 F316; A182 F11 |
| 7 | Cover | ASTM A105; A182 F304; A182 F316; A182 F11 |
| 8 | Bolt | ASTM A193 B7; A193 B16; A193 B8M |
| 9 | Pipe | Carbon steel; SS304; SS316 |
| 10 | Yoke | ASTM A105; A182 F304; A182 F316; A182 F11 |
| 11 | Packing | Graphite |
| 12 | Shaft | Carbon steel; stainless steel |
| 13 | Gland flange | ASTM A105; A182 F304; A182 F316; A182 F11 |
| 14 | Eyelet bolt | ASTM A193 B7; A193 B8; A193 B8M; A193 B16 |
| 15 | Gland | ASTM A105; A182 F304; A182 F316; A182 F11 |
| 16 | Nut | ASTM A194 2H; A194 8; A194 8M; A194 4 |
| 17 | Stem nut | A276 410 |
| 18 | Handwheel | A197 |
| 19 | Lock nut | ANSI 1035 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Forged steel bellow seal globe/gate valve ANSI series |
| Valve configurations | Globe valve or gate valve |
| Size range | 1/2 inch to 3 inch |
| Pressure class | Class 150, 300, 600, 900, 1500 |
| Connections | Butt-welded, socket-welded, threaded NPT, flanged |
| Design standard | API 602 |
| Butt-welded ends | ANSI B16.25 |
| Socket-welded ends | ANSI B16.11 |
| Flanged ends | ANSI B16.5 |
| Face-to-face / end-to-end | ANSI B16.10 and ISO 5752 where applicable |
| Testing | API 598 |
| Operation | Handwheel standard; electric actuator option by project requirement |
| Actuator interface | ISO 5210 ready flange by project requirement |
| Body material options | ASTM A105, A182 F304, A182 F316, A182 F11 |
| Bellow material | SS304, SS316L |
Dimensions and Class Reference

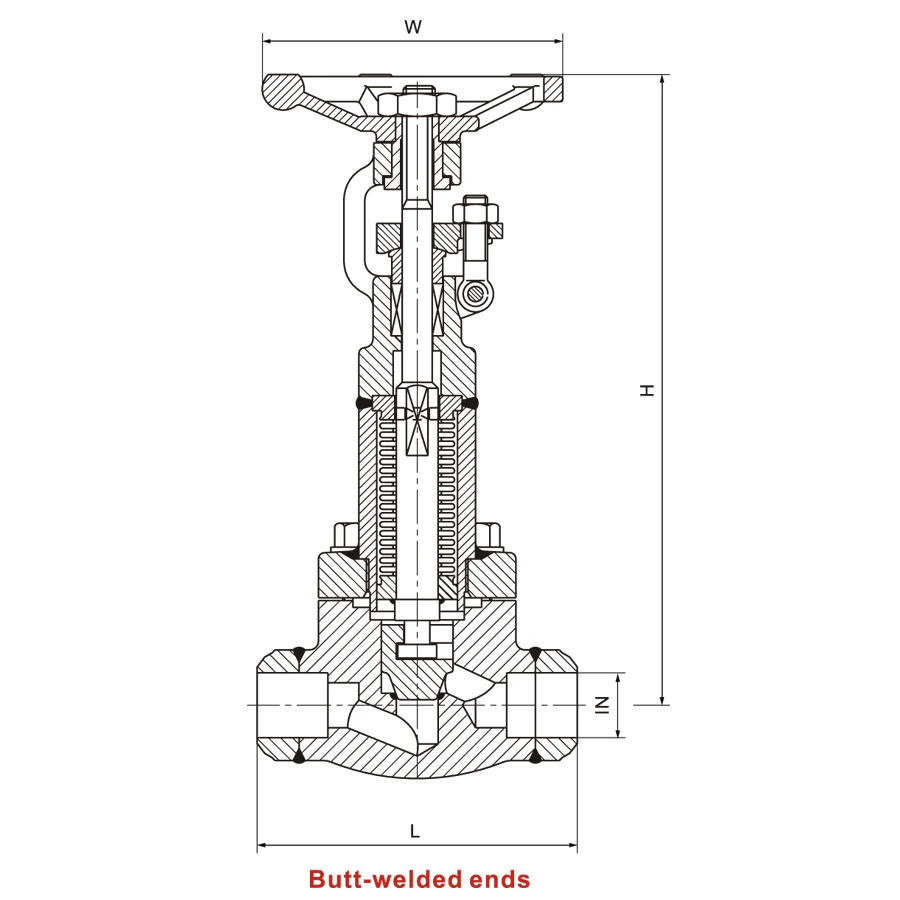

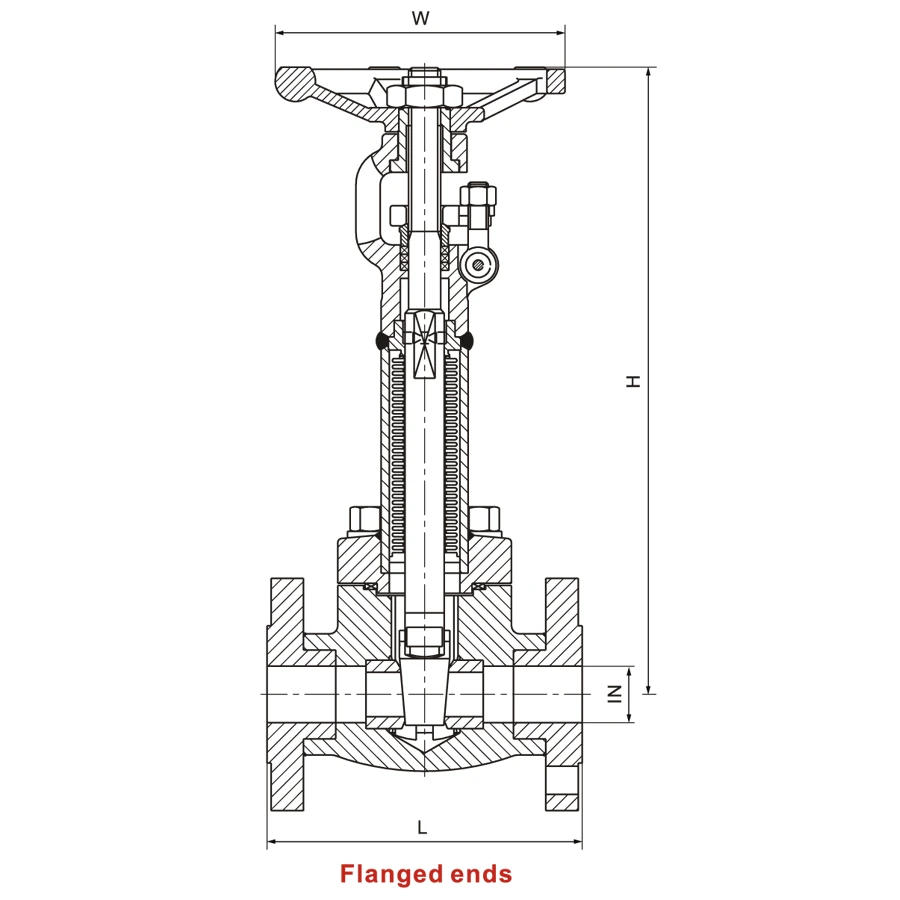

For flanged or butt-welded ends, the source catalog states that end-to-end dimensions follow ANSI B16.10 and ISO 5752. Numeric L values are only provided for SW/NPT globe valve 800LB and SW/NPT gate valve 800LB.
| Parameter | Class / Type | 1/2 in | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in | 2 in |
|---|---|---|---|---|---|---|---|
| L (FL/BW) | 150LB | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 |
| L (FL/BW) | 300LB | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 |
| L (FL/BW) | 600LB | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 |
| L (FL/BW) | 900LB / 1500LB | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 | ANSI B16.10 / ISO 5752 |
| L (SW/NPT) | Globe valve 800LB | 79 | 92 | 111 | 120 | 140 | 172 |
| L (SW/NPT) | Gate valve 800LB | 79 | 92 | 111 | 120 | 120 | 140 |
| H | Globe valve 150LB | 215 | 220 | 280 | 315 | 340 | 405 |
| H | Globe valve 300LB | 215 | 220 | 280 | 315 | 340 | 405 |
| H | Globe valve 600LB | 250 | 250 | 350 | 395 | 420 | 480 |
| H | Globe valve 900LB | 350 | 350 | 400 | 450 | 510 | 750 |
| H | Globe valve 1500LB | 350 | 350 | 400 | 450 | 510 | 750 |
| H | Gate valve 150LB | 280 | 285 | 310 | 350 | 370 | 450 |
| H | Gate valve 300LB | 280 | 285 | 310 | 350 | 370 | 450 |
| H | Gate valve 600LB | 280 | 285 | 310 | 350 | 370 | 450 |
| H | Gate valve 900LB | 380 | 380 | 420 | 480 | 550 | 800 |
| H | Gate valve 1500LB | 380 | 380 | 420 | 480 | 550 | 800 |
| W | 150LB | 100 | 100 | 125 | 160 | 160 | 180 |
| W | 300LB | 100 | 100 | 125 | 160 | 160 | 180 |
| W | 600LB | 100 | 100 | 125 | 160 | 160 | 180 |
| W | 900LB | 125 | 125 | 160 | 160 | 180 | 200 |
| W | 1500LB | 125 | 125 | 160 | 160 | 180 | 200 |
Applications
- Steam systems: compact forged bellow seal valve option for selected steam service.
- Thermal oil and heat transfer systems: suitable for compatible process fluids where stem sealing reliability is important.
- Power engineering: small-bore auxiliary lines, drain lines, vent lines and project-confirmed services.
- Chemical and petrochemical service: selected compatible media and pressure classes.
- Gas and industrial media: project-confirmed service for air, gas and non-aggressive fluids.
- ANSI pipeline projects: suitable where inch sizes and Class ratings are required.
Testing, Installation and Operation
Testing
- Pressure testing according to API 598.
- Shell test: nominal pressure Class × 1.5.
- Seat tightness test: nominal pressure Class × 1.1.
- Certification and documentation requirements should be confirmed by project.
Installation
- Install in horizontal lines with upright position unless project drawing confirms otherwise.
- Flow direction should follow the body mark.
Operation
- Handwheel operation.
- Electric actuator option by project requirement.
- ISO 5210 ready flange by project requirement.
Standards and Compliance
- Design standard: API 602.
- Testing: API 598.
- Butt-welded ends: ANSI B16.25.
- Socket-welded ends: ANSI B16.11.
- Flanged ends: ANSI B16.5.
- Face-to-face / end-to-end dimensions: ANSI B16.10 and ISO 5752 where applicable.
- Size and pressure class: 1/2 inch to 3 inch, Class 150 to Class 1500.
FAQ
Q: Is HN69 a globe valve or a gate valve?
A: HN69 is a forged steel bellow seal product family that can cover globe valve and gate valve configurations. The final valve configuration should be selected according to project requirements.
Q: What size and pressure range does HN69 cover?
A: HN69 covers 1/2 inch to 3 inch sizes and Class 150 to Class 1500 pressure ratings.
Q: What connection types are available?
A: The source catalog lists butt-welded, socket-welded, threaded NPT and flanged connection options.
Q: Should EN/DIN DN/PN tables be used for HN69?
A: No. HN69 is an ANSI product series and should use inch sizes and Class ratings.
Q: Is there a pressure-temperature table for HN69?
A: The reviewed source catalog pages do not provide a separate HN69 pressure-temperature table. Pressure-temperature limits should be confirmed according to material grade, pressure class and applicable project standards.
