Product Overview

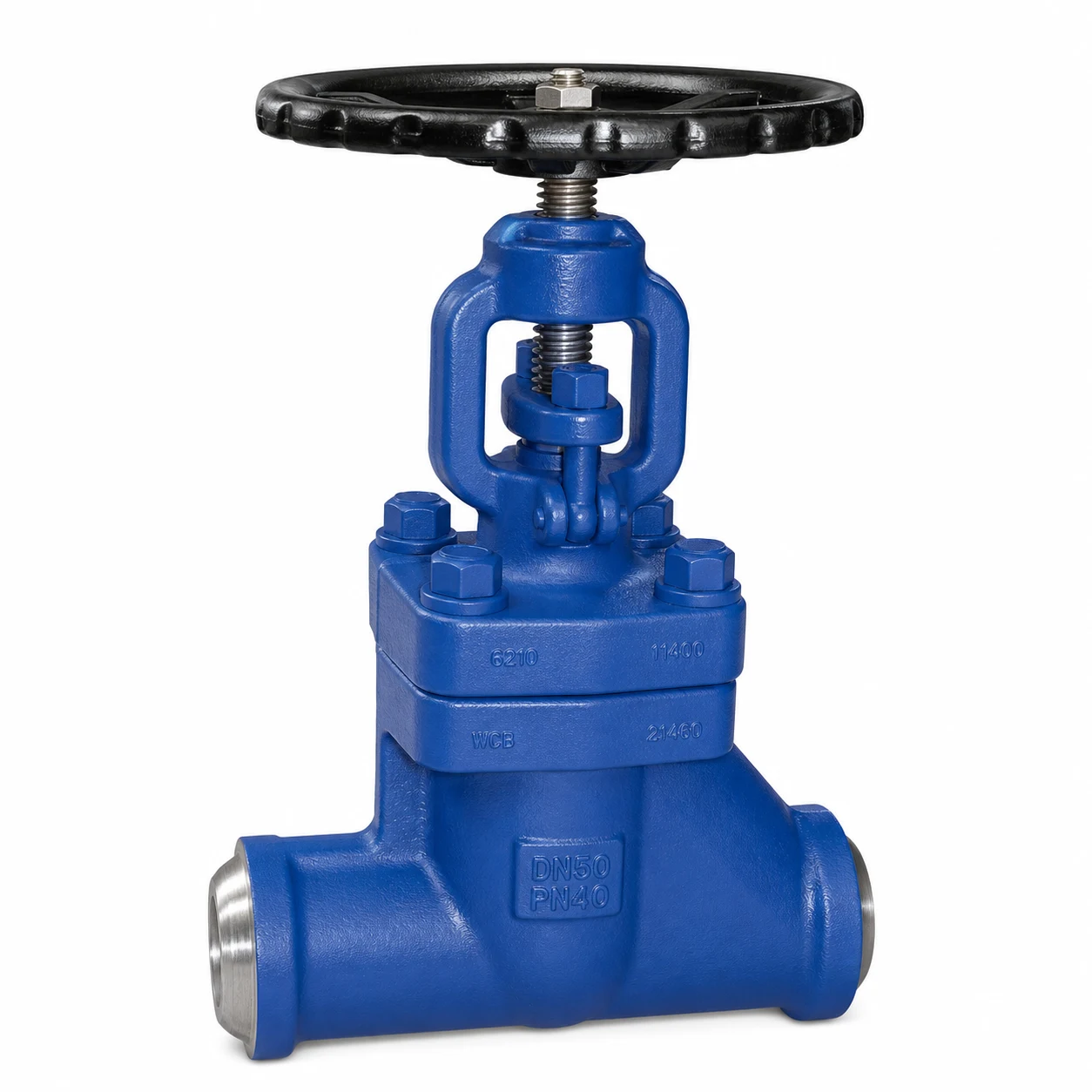

The HN62 Forged Globe Valve is a compact EN/DIN globe valve series for smaller pipe sizes and higher pressure ratings. It is intended for shut-off and selected throttling service where forged valve construction, compact dimensions and DN/PN compatibility are required.

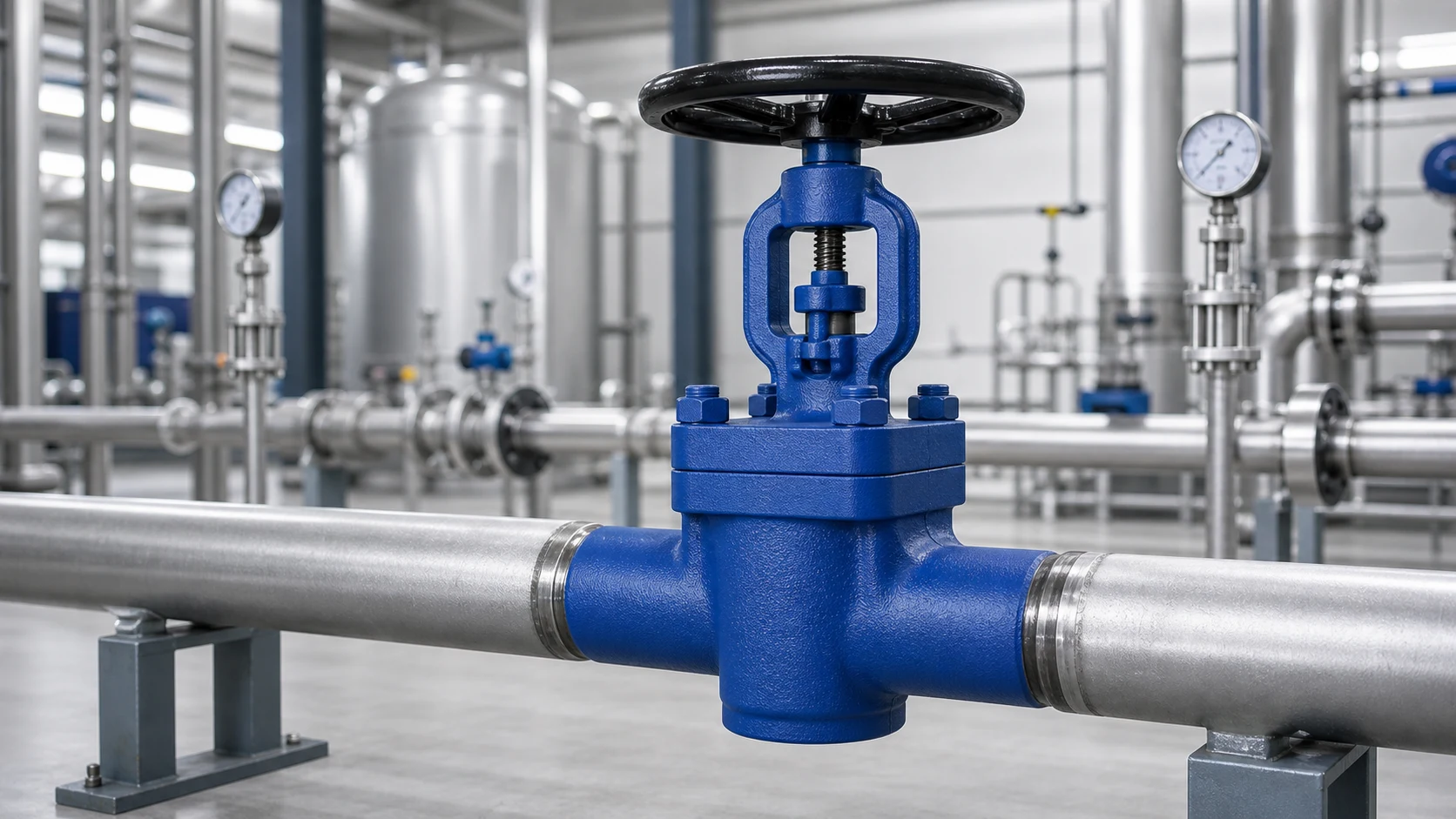

Typical applications include steam systems, utility lines, oil and gas service, chemical processing, petrochemical auxiliary lines and general industrial pipelines using compatible fluids.
HN62 covers DN15 to DN50 with PN16 to PN160 pressure classes. Connection options include EN 1092-1 flanged ends and project-dependent butt-welded ends. Final configuration should be confirmed according to pressure, temperature, medium and project requirements.
Key Features
- Forged compact construction: Suitable for small-bore industrial service where compact valve dimensions are required.
- High pressure range: Covers PN16, PN25, PN40, PN63, PN100 and PN160 configurations according to source catalog data.
- Globe valve flow path: Designed for shut-off and selected throttling operation when specified for the operating conditions.
- Rising rotating stem: Source catalog describes a rotating, rising stem structure.
- Flanged or butt-welded ends: Connection type can be selected according to installation requirements.
- Multiple disc options: Plug, needle and parabolic disc options may be considered for project-specific service conditions.
Applications and Technical Description
Applications
- Closing or throttling liquid and gaseous media.
- Water, steam, air, crude petroleum and petroleum products.
- Natural gas, gas condensate, technological solutions, oxygen and non-aggressive gases.
- Power engineering, chemical and petrochemical industry.
Technical Description
- Rotating, rising stem design.
- Gradual valve opening helps reduce hydraulic and thermal shock risk.
- Can be used for open-close operation and selected intermediate throttling positions when properly specified.
Sectional Structure and Materials

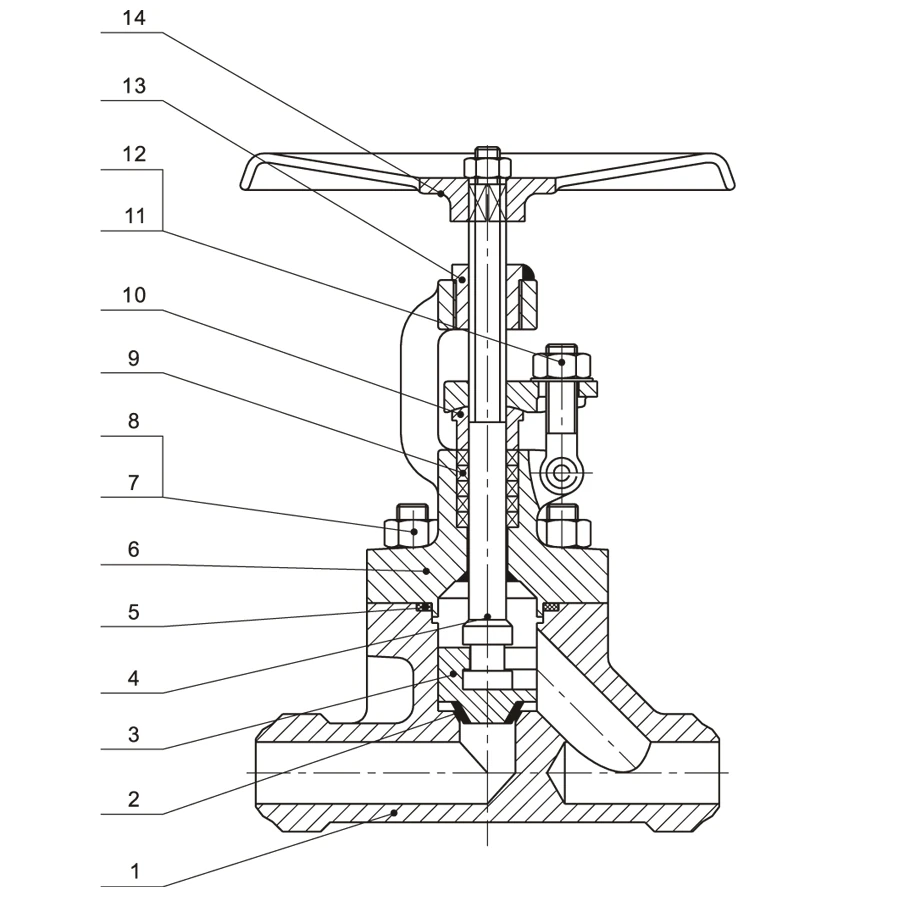

The numbered sectional drawing corresponds to the position numbers in the materials table. HN62 uses 14 numbered material positions.
| Pos. | Name | Material |
|---|---|---|
| 1 | Body | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 2 | Seat | 13Cr, STL6 |
| 3 | Disc | A105, F316 |
| 4 | Stem | X20Cr13, F316 |
| 5 | Gasket | Graphite + stainless steel |
| 6 | Bonnet | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 7 | Bolt | ASTM A193 B7, A193 B16, A193 B8M or equivalent |
| 8 | Nut | ASTM A194 2H, A194 4, A194 8M or equivalent |
| 9 | Packing | Graphite |
| 10 | Gland | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 11 | Eyelet bolt | ASTM A193 B7, A193 B16, A193 B8M or equivalent |
| 12 | Nut | ASTM A194 2H, A194 4, A194 8M or equivalent |
| 13 | Screw | C.S |
| 14 | Handwheel | Steel |
Technical Specifications
| Design Type | Forged EN/DIN globe valve |
|---|---|
| Nominal Size | DN15-DN50 |
| Pressure Rating | PN16, PN25, PN40, PN63, PN100, PN160 |
| Connection Types | Flanged EN 1092-1; butt-welded EN 12627 or project requirement |
| Face-to-Face | EN 558-1 or project-approved drawing |
| Testing | EN 12266-1; shell test nominal pressure x 1.5 according to source catalog note |
| Operation | Handwheel standard; electric actuator and ISO 5210 actuator flange options project-dependent |
Dimensions and Performance Data

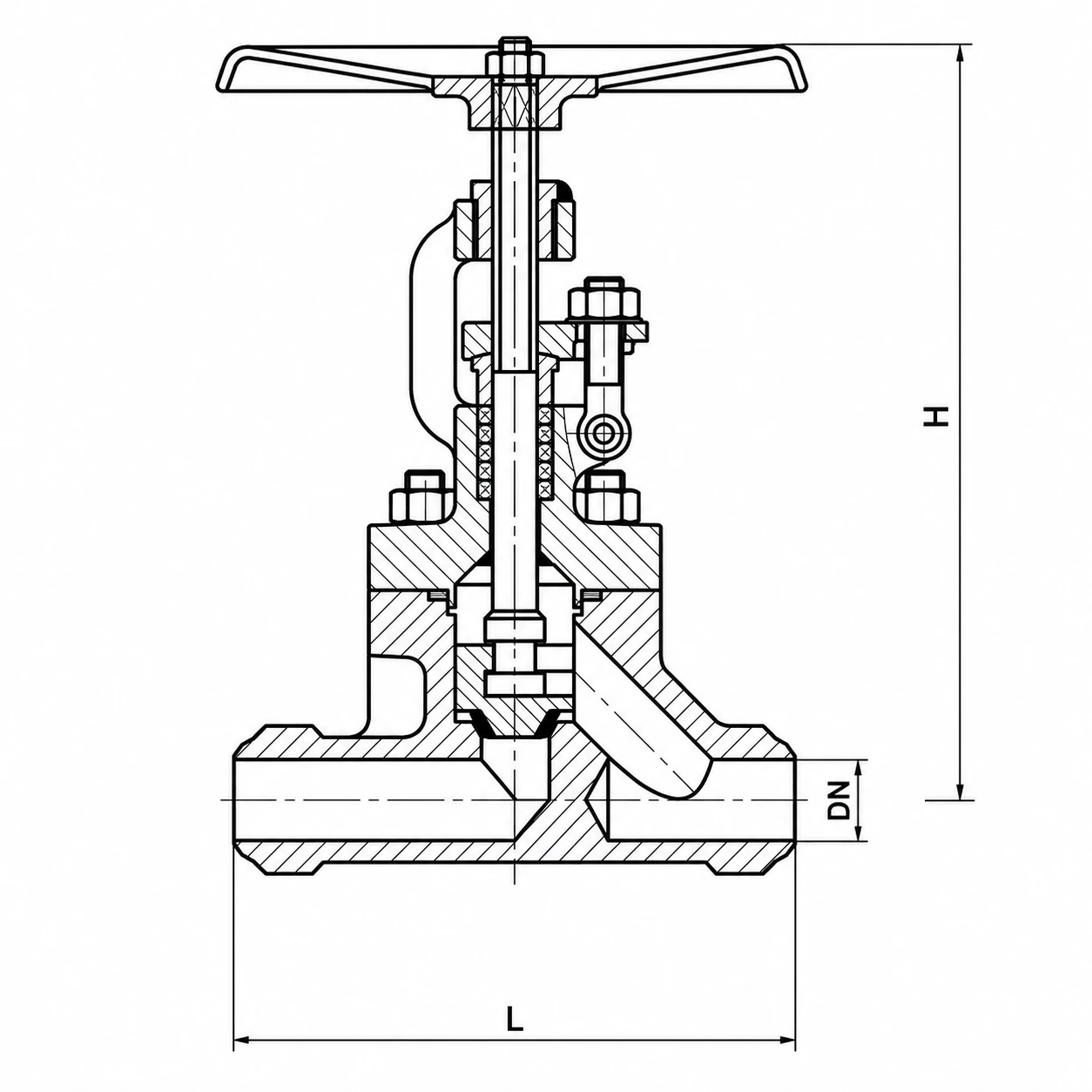

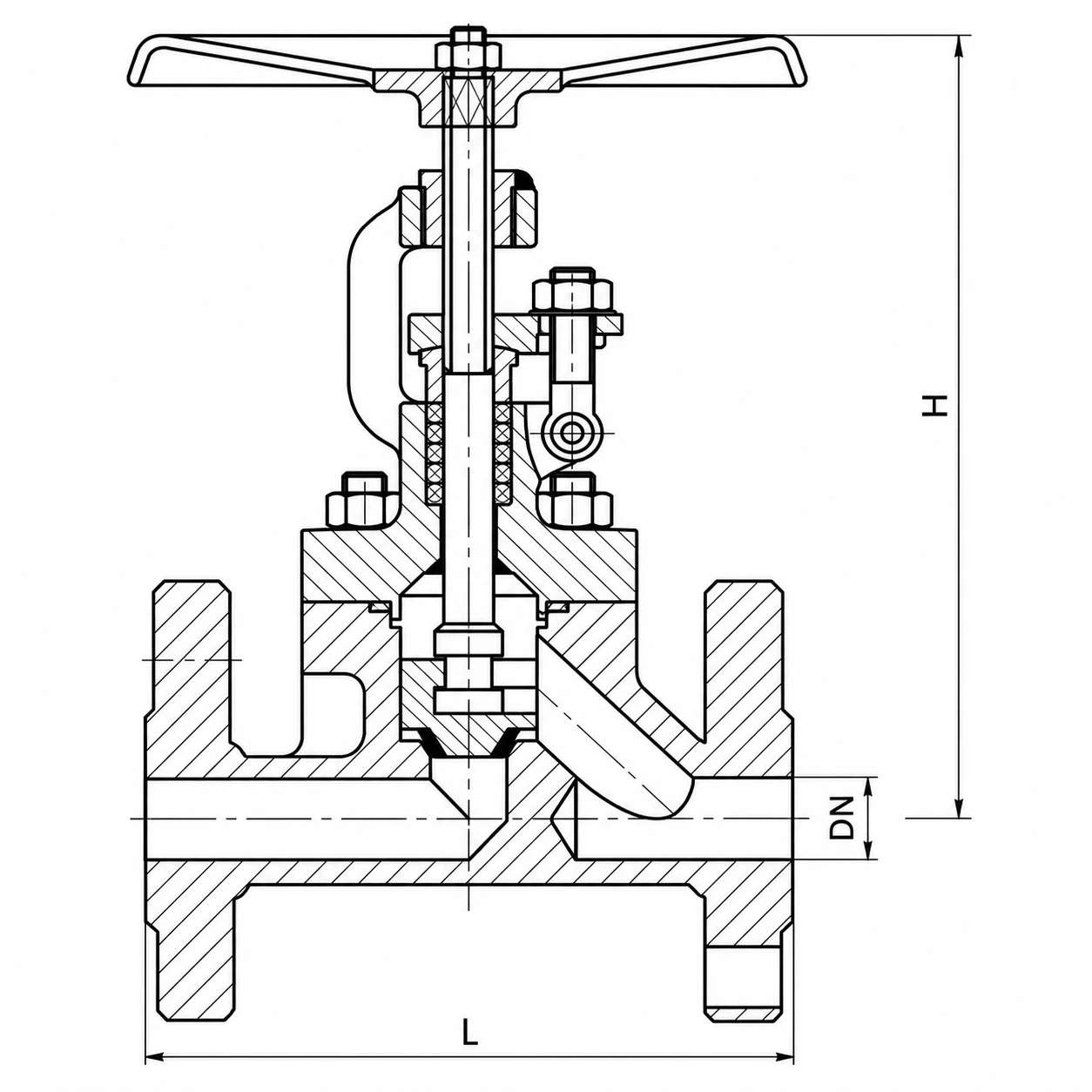

The drawings show the dimensional symbols used in the table below. Values are for preliminary selection and should be confirmed against the approved datasheet before order.
| DN | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| L, mm PN16-PN40 | 130 | 150 | 160 | 180 | 200 | 230 |
| L, mm PN63-PN160 | 150 | 150 | 160 | 180 | 210 | 250 |
| H, mm PN16-PN40 | 185 | 185 | 190 | 200 | 220 | 250 |
| H, mm PN63-PN160 | 200 | 200 | 220 | 245 | 252 | 270 |
| Stroke, mm | 12 | 13 | 16 | 18 | 23 | 26 |
| Weight (kg) – Flanged Ends | ||||||
| PN16 | 4.8 | 5.8 | 6.8 | 9.5 | 10.1 | 13.8 |
| PN25 | 4.8 | 5.8 | 6.8 | 9.5 | 10.1 | 14 |
| PN40 | 4.8 | 5.8 | 6.8 | 9.5 | 10.1 | 14 |
| Weight (kg) – Butt-Welded Ends | ||||||
| PN16 | 3.2 | 4 | 4.8 | 5.9 | 6.5 | 8.5 |
| PN25 | 3.2 | 4 | 4.8 | 5.9 | 6.5 | 8.5 |
| PN40 | 3.2 | 4 | 4.8 | 5.9 | 6.5 | 8.5 |
| PN63 | 4.2 | 4.6 | 5.8 | 8.8 | 14 | 19 |
| PN100 | 4.2 | 4.6 | 5.8 | 8.8 | 14 | 19 |
| PN160 | 4.2 | 4.6 | 5.8 | 8.8 | 14 | 19 |
Pressure-Temperature Reference
Working pressure varies by material grade and operating temperature. The following EN 12516-1 reference values are listed in MPa for preliminary selection only.
| Material | PN | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 425 | 475 | 500 | 525 | 550 | 575 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon steel 1C1 / A105 / 1.0460 | PN16 | 1.58 | 1.46 | 1.43 | 1.38 | 1.32 | 1.22 | 1.17 | 1.15 | 0.91 | – | – | – | – | – |
| Carbon steel 1C1 / A105 / 1.0460 | PN25 | 2.47 | 2.29 | 2.23 | 2.16 | 2.06 | 1.91 | 1.82 | 1.70 | 1.42 | – | – | – | – | – |
| Carbon steel 1C1 / A105 / 1.0460 | PN40 | 3.95 | 3.66 | 3.57 | 3.46 | 3.29 | 3.06 | 2.92 | 2.72 | 2.27 | – | – | – | – | – |
| Carbon steel 1C1 / A105 / 1.0460 | PN63 | 6.35 | 6.22 | 5.77 | 5.62 | 5.45 | 5.19 | 4.81 | 4.59 | 4.29 | – | – | – | – | – |
| Carbon steel 1C1 / A105 / 1.0460 | PN100 | 9.88 | 9.15 | 8.92 | 8.65 | 8.23 | 7.64 | 7.29 | 6.81 | 5.67 | – | – | – | – | – |
| Carbon steel 1C1 / A105 / 1.0460 | PN160 | 15.32 | 15.02 | 13.91 | 13.56 | 13.14 | 12.51 | 11.62 | 11.09 | 10.35 | – | – | – | – | – |
| Alloy steel 1C9 / 1.7357 / F11 | PN63 | 6.43 | 6.40 | 6.19 | 5.96 | 5.74 | 5.33 | 5.00 | 4.55 | 4.36 | 3.94 | 3.14 | 2.26 | 1.58 | 1.09 |
| Alloy steel 1C9 / 1.7357 / F11 | PN100 | 10.21 | 10.16 | 9.82 | 9.47 | 9.11 | 8.46 | 7.94 | 7.22 | 6.92 | 6.67 | 4.98 | 3.58 | 2.51 | 1.74 |
| Alloy steel 1C9 / 1.7357 / F11 | PN160 | 15.51 | 15.44 | 14.92 | 14.39 | 13.85 | 12.86 | 12.07 | 10.97 | 10.53 | 10.14 | 9.50 | 5.45 | 3.81 | 2.64 |
Note: values are transcribed from the supplier catalog table. Verify against approved datasheet before quoting if specific operating points are required.

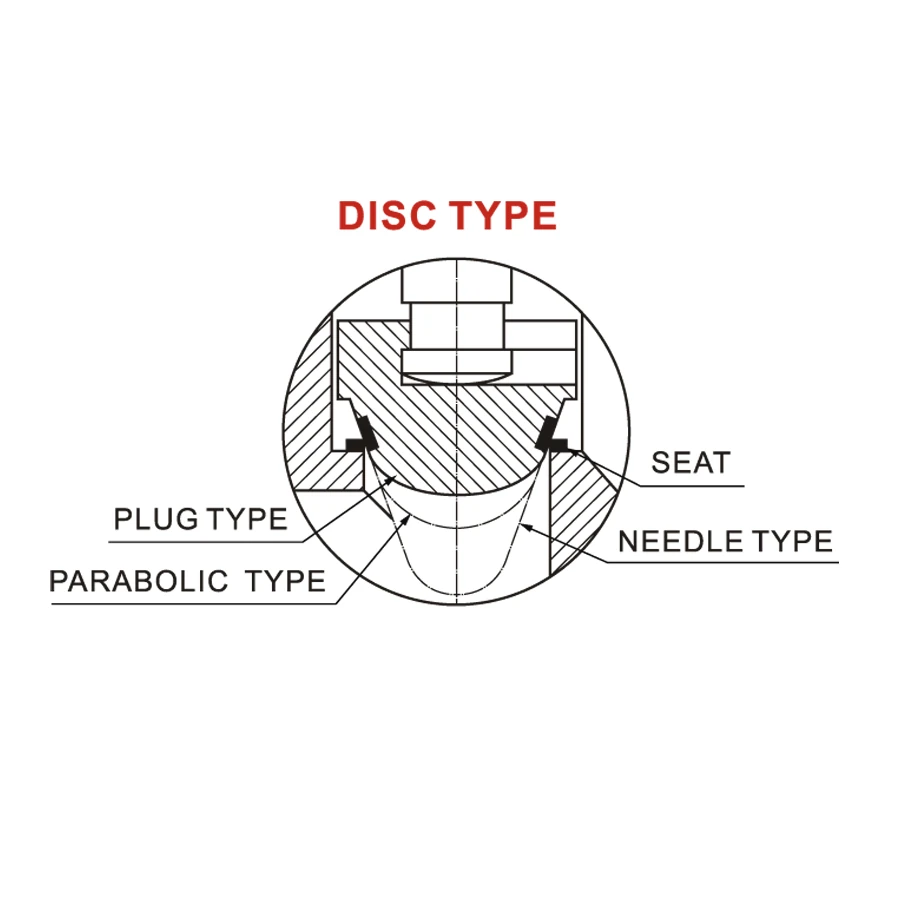

Disc Type Options
- Plug type: General shut-off service depending on project requirements.
- Needle type: May be considered where more gradual flow adjustment is required.
- Parabolic type: May be considered for throttling-oriented applications.
Testing, Installation and Operation
Testing
- Pressure testing by water for strength and tightness according to EN 12266.
- Shell test reference: nominal pressure x 1.5.
- Seat tightness reference: nominal pressure x 1.1.
Installation and Operation
- Source catalog states the valve may be installed in any position; direction of flow is under the plug.
- Handwheel operation is standard; electric actuator options may be discussed based on project requirements.
- ISO 5210 actuator-ready flange option is listed in the source catalog.
Standards and Compliance
- Connection reference: EN 1092-1 flanged ends or EN 12627 butt-welded ends.
- Face-to-face reference: EN 558-1.
- Pressure testing reference: EN 12266.
- Certification note in source catalog: PED/97/23/EC.
Actual valve configuration, material grade and documentation package should be confirmed according to project requirements before order.
Frequently Asked Questions
Q: How is HN62 different from HN61?
HN62 is a compact forged globe valve series covering DN15-DN50 and up to PN160. HN61 covers larger EN/DIN sizes and is used for more general industrial globe valve service.
Q: Can HN62 be supplied with butt-welded ends?
Yes. The source catalog lists butt-welded connections according to EN 12627 as well as flanged ends according to EN 1092-1 or project requirements.
Q: Are actuator options available?
Manual handwheel operation is standard. Electric actuator options and ISO 5210 actuator-ready configuration may be discussed based on project requirements.
