Gate Valve HN64

Gate valve HN64 is an EN/DIN wedge gate valve for industrial shut-off service, available from DN50 to DN1000 with PN16 to PN100 pressure ratings. It is suitable for water, steam, air, selected chemical media, petrochemical pipelines, mining and metallurgical service where full-open or full-closed isolation is required.

SKU: HN64-GTV Categories: ,

Product Overview

The HN64 Gate Valve is an EN/DIN industrial wedge gate valve designed for pipeline isolation service. It is used where the valve normally operates either fully open or fully closed, helping provide low flow resistance through the pipeline when open.

HN64 is available in a broad DN50-DN1000 size range and pressure ratings from PN16 to PN100. Depending on project requirements, the valve can be supplied with flanged or butt-welded ends, handwheel operation, gearbox operation or actuator-ready top flange configuration.

Typical applications include industrial water, drinking water, steam, air, non-aggressive chemical service, petrochemical and refinery pipelines, mining service and metallurgical process lines. Final material selection should be confirmed according to pressure rating, operating temperature and fluid compatibility.

Key Features

  • Wedge gate valve design: For shut-off pipeline isolation service.
  • Rising, non-rotating stem: Provides clear valve position indication.
  • Suitable for fully open or fully closed operation: Not intended for throttling service.
  • Available with flanged or butt-welded end connections: EN 1092-1 flanged and EN 12627 butt-welded options.
  • DN50-DN1000 range: With PN16, PN25, PN40, PN63 and PN100 options.
  • Handwheel, gearbox and actuator-ready configurations: May be selected according to valve size and project requirement.
  • Carbon steel, alloy steel and stainless steel body material options: Available depending on service condition.

Sectional Structure and Materials

The numbered sectional drawing corresponds to the position numbers in the materials table. HN64 uses 16 numbered material positions.

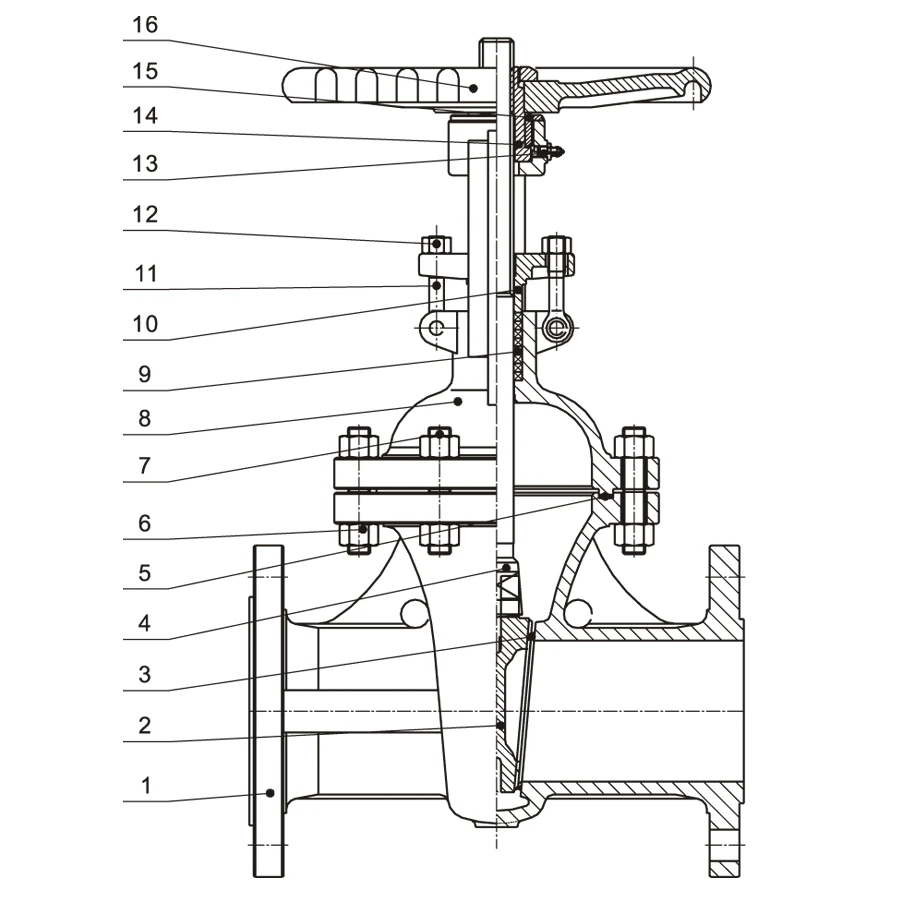

HN64 gate valve sectional structure drawing
Sectional structure drawing

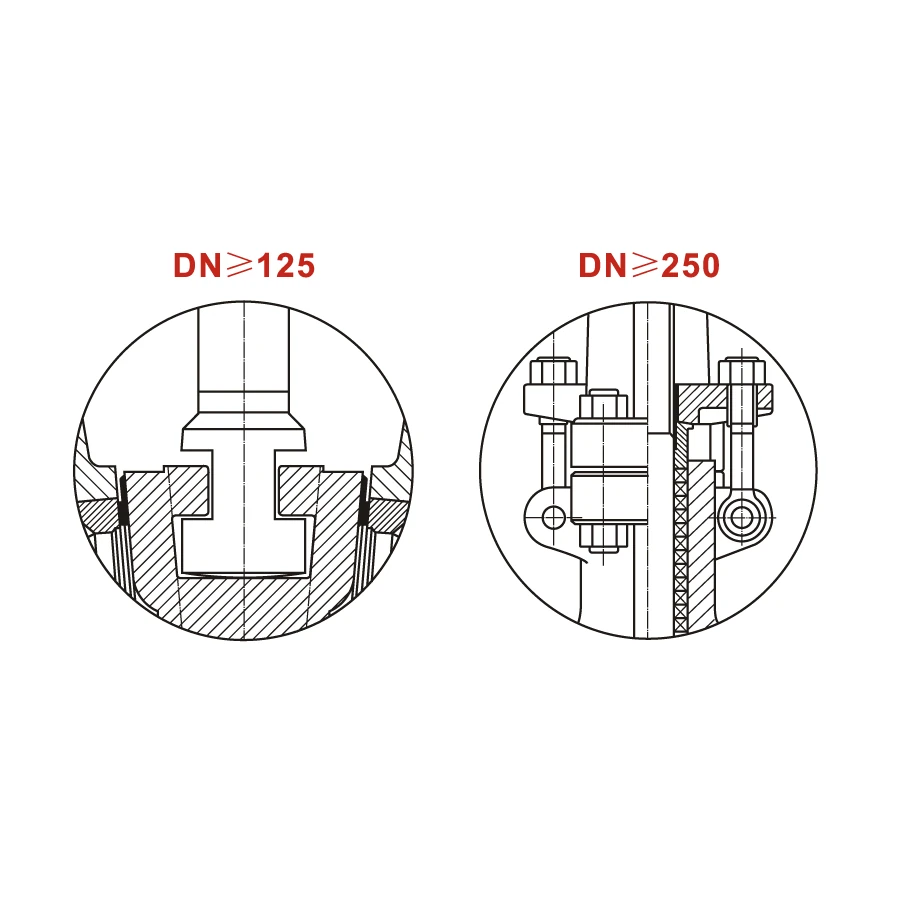

HN64 gate valve large size construction detail
Large size construction detail
Pos. Name Material
1 Body 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M
2 Wedge 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M
3 Seat 13Cr, STL6
4 Stem X20Cr13, F316
5 Gasket Graphite + stainless steel
6 Nut ASTM A194 2H, A194 4, A194 8M
7 Bolt ASTM A193 B7, A193 B16, A193 B8M
8 Bonnet 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M
9 Packing Graphite
10 Gland 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M
11 Eyelet bolt ASTM A193 B7, A193 B16, A193 B8M
12 Nut ASTM A194 2H, A194 4, A194 8M
13 Grease nipple Cu alloy
14 Stem nut GGG40.3, Cu alloy
15 Screw Carbon steel, SS316
16 Handwheel Carbon steel

Technical Specifications

Valve type Wedge gate valve
Standard range EN/DIN industrial valve
Nominal size DN50-DN1000
Pressure rating PN16-PN100
Body materials A216 WCB, A217 WC6, A351 CF8M or project-specified equivalent
Connection options Flanged EN 1092-1, butt-welded EN 12627 or project-specified connection
Face-to-face EN 558-1, 15 Series / 26 Series; DIN 3202 F5 / F7 Series
Operation Handwheel, gearbox, electric actuator, actuator-ready ISO 5210 top flange
Stem design Rising, non-rotating stem
Typical service Pipeline shut-off / isolation service

Dimensions and Performance Data

The drawings show dimensional symbols used in the table below. Values are for preliminary selection and should be confirmed against the approved datasheet before order.

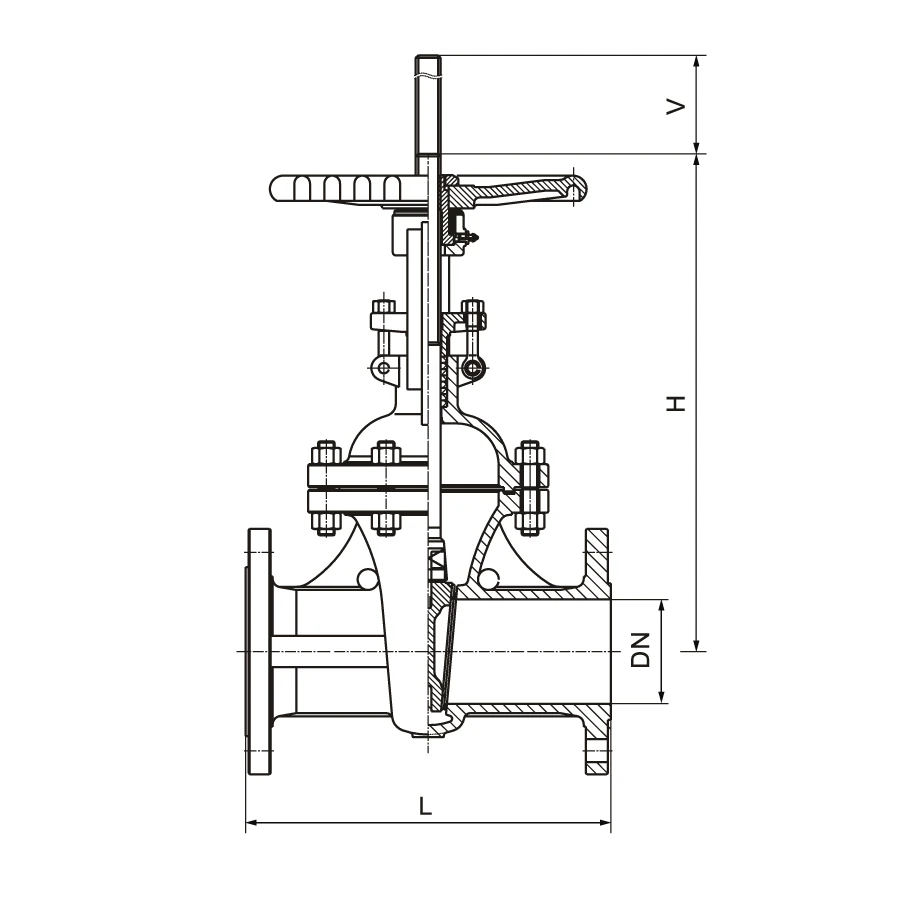

HN64 gate valve handwheel dimension drawing
Handwheel configuration dimensional reference

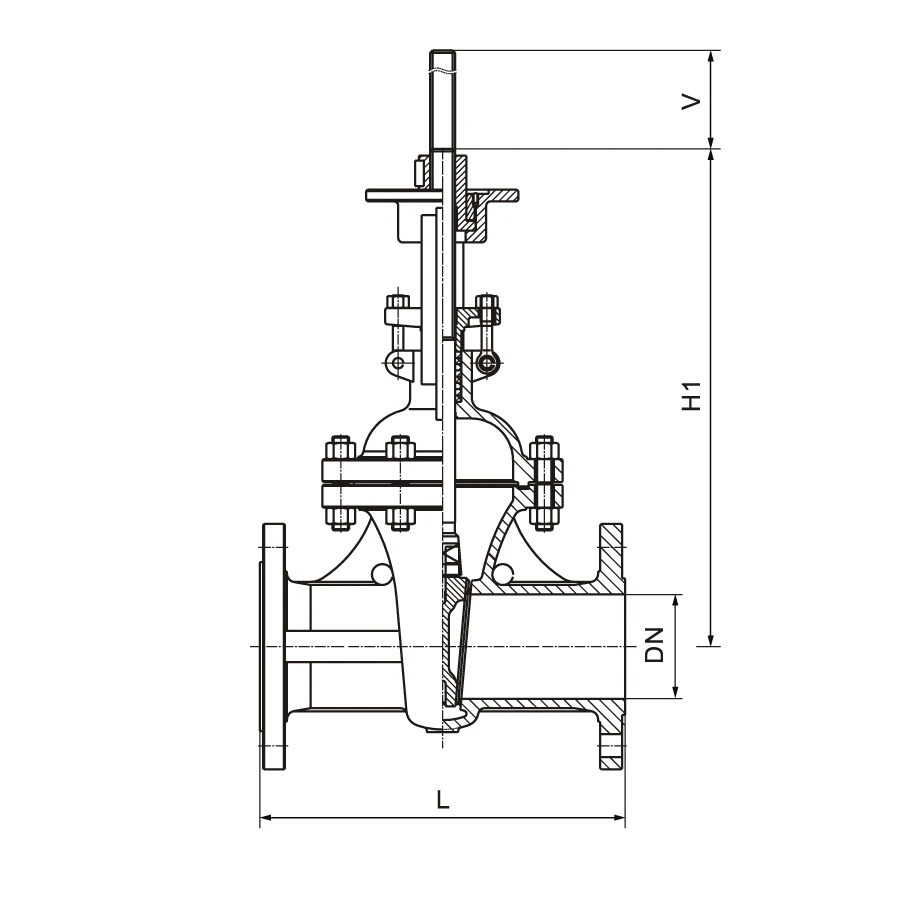

HN64 gate valve actuator-ready dimension drawing
Actuator-ready configuration dimensional reference

PN16 Dimensions

DN L mm H mm V mm Weight FL kg Weight BW kg H1 mm Torque Nm Top flange ISO 5210
50 250 358 70 22 17 365 25 F10
65 270 375 83 32 27 405 30 F10
80 280 433 96 43 30 425 35 F10
100 300 502 120 52 45 480 40 F10
125 325 612 145 80 68 570 55 F10
150 350 676 170 100 85 650 80 F14
200 400 820 220 140 118 770 140 F14
250 450 969 270 233 216 810 210 F14
300 500 1142 320 337 306 945 300 F16
350 550 1280 366 515 461 1085 400 F16
400 600 1452 417 645 576 1375 590 F25
500 700 1676 518 947 773 1575 780 F25
600 800 1864 620 1458 1208 1835 1280 F25
700 900 2360 690 1953 1823 2360 2200 F25
800 1000 2980 790 3100 2760 2980 2500 F30
900 1100 3509 970 4860 4780 3150 3600 F35
1000 1200 3873 1071 5700 5600 3210 4700 F35

PN25 Dimensions

DN L mm H mm V mm Weight FL kg Weight BW kg H1 mm Torque Nm Top flange ISO 5210
50 250 358 70 22 20 365 25 F10
65 270 375 83 32 26 405 30 F10
80 280 433 96 39 35 425 35 F10
100 300 502 120 51 44 480 50 F10
125 325 608 145 79 69 570 70 F10
150 350 676 170 90 80 650 100 F14
200 400 820 220 150 126 770 180 F14
250 450 969 270 250 211 810 290 F14
300 500 1142 320 360 310 945 420 F16
350 550 1270 366 562 506 1085 580 F16
400 600 1435 417 696 613 1375 850 F25
500 700 1594 512 1021 898 1575 1150 F25
600 800 1964 614 1258 1007 1835 1900 F25
700 900 2690 690 2080 1810 2690 2710 F25
800 1000 3160 790 2960 2495 3160 3900 F25
900 1100 3509 970 4860 4260 3150 5400 F35
1000 1200 3873 1071 5700 5000 3210 7000 F35

PN40 Dimensions

DN L mm H mm V mm Weight FL kg Weight BW kg H1 mm Torque Nm Top flange ISO 5210
50 250 397 70 30 25 370 30 F10
65 290 453 83 38 40 410 40 F10
80 310 496 96 52 50 450 50 F10
100 350 568 120 78 70 540 75 F10
125 400 608 145 92 95 640 110 F14
150 450 700 170 136 135 715 180 F14
200 550 848 220 249 215 852 300 F14
250 650 1025 270 361 310 1014 470 F16
300 750 1180 320 570 470 1165 730 F25
350 850 1298 366 717 580 1235 1000 F25
400 950 1435 417 956 740 1420 1280 F30
500 1150 1960 512 1390 1000 1960 2000 F35
600 1350 2265 614 1920 1580 2265 3400 F35

PN63 Dimensions

DN L mm H mm V mm Weight FL kg Weight BW kg H1 mm Torque Nm Top flange ISO 5210
50 250 418 70 42 35 370 35 F14
65 280 465 83 48 50 410 50 F14
80 310 496 96 57 63 450 70 F14
100 350 582 120 93 81 540 110 F14
125 400 638 145 114 110 630 180 F14
150 450 718 170 198 160 715 260 F14
200 550 916 219 345 293 855 500 F16
250 650 1053 267 482 447 1015 820 F25
300 750 1203 318 588 535 1165 1250 F30
350 850 1278 356 869 690 1235 1500 F30
400 950 1457 404 1134 900 1420 2200 F30
500 1150 2100 493 1390 1130 2060 3400 F35
600 1350 2360 598 1920 1620 2300 6200 F35

PN100 Dimensions

DN L mm H mm V mm Weight FL kg Weight BW kg H1 mm Torque Nm Top flange ISO 5210
50 250 420 70 45 38 372 50 F10
65 280 465 83 58 54 413 70 F10
80 310 496 96 70 75 455 110 F14
100 350 616 120 107 85 544 170 F14
125 400 714 145 140 115 630 280 F14
150 450 773 170 235 170 715 450 F16
200 550 934 219 399 347 855 850 F25
250 650 1090 267 613 513 1015 1450 F25
300 750 1230 318 950 773 1165 1950 F30
350 850 1330 356 1215 725 1235 2700 F30
400 950 1480 404 1480 1102 1420 3600 F35
500 1150 2200 493 1560 1260 2080 6300 F35
600 1350 2480 598 2200 1780 2380 10000 F35

Pressure-Temperature Reference

Working pressure varies by material grade and operating temperature. The following EN 12516-1 reference values are listed in MPa for preliminary selection only. The catalog P-T table provides PN16/PN25/PN40 data. For PN63/PN100 project conditions, confirm allowable pressure-temperature values against the approved material standard and project datasheet.

Material PN 100 150 200 250 300 350 400 425 450 500 525 550 575 595
1.0619 / A216 WCB PN16 1.36 1.27 1.14 1.04 0.94 0.88 0.84 – – – – – – –
1.0619 / A216 WCB PN25 2.13 1.98 1.78 1.62 1.47 1.37 1.32 – – – – – – –
1.0619 / A216 WCB PN40 3.41 3.17 2.84 2.60 2.35 2.19 2.11 – – – – – – –
1.4408 / A351 CF8M PN16 1.33 1.20 1.10 1.02 0.96 0.91 0.87 0.86 0.86 0.83 – – – –
1.4408 / A351 CF8M PN25 2.07 1.87 1.72 1.60 1.50 1.42 1.36 1.35 1.34 1.30 – – – –
1.4408 / A351 CF8M PN40 3.32 2.99 2.75 2.56 2.41 2.27 2.18 2.16 2.14 2.08 – – – –
1.7357 / A217 WC6 PN16 1.63 1.58 1.49 1.43 1.33 1.23 1.15 1.11 1.07 0.89 0.68 0.35 0.28 0.20
1.7357 / A217 WC6 PN25 2.54 2.48 2.33 2.23 2.08 1.93 1.80 1.73 1.67 1.39 1.06 0.55 0.43 0.32
1.7357 / A217 WC6 PN40 4.07 3.96 3.74 3.57 3.33 3.09 2.89 2.77 2.67 2.23 1.70 0.88 0.69 0.52

Applications

  • Industrial water and drinking water pipelines.
  • Steam, air and selected industrial gas service.
  • Non-aggressive chemical liquid and gas service.
  • Petrochemical and refinery process pipelines.
  • Mining and metallurgical industry service.
  • General industrial isolation lines where the valve operates fully open or fully closed.

Testing, Installation and Operation

Testing

  • Pressure tests are carried out according to EN 12266-1.
  • Shell test: nominal pressure PN x 1.5.
  • Seat tightness test: nominal pressure PN x 1.1.
  • Certificate of conformity and project documentation can be discussed according to order requirements.

Installation

  • The valve can be installed in vertical or horizontal pipelines.
  • Operation should normally be fully open or fully closed.
  • Flow direction and installation requirements should be confirmed against the approved drawing.

Operation

  • Handwheel operation if required.
  • Gearbox and electric actuator options may be selected according to size, torque and project requirement.
  • ISO 5210 actuator-ready top flange is available according to the dimension table.

Standards and Compliance

  • Design / pressure-containing parts: EN 12516-2 reference.
  • Pressure testing: EN 12266-1.
  • Flange connection: EN 1092-1 or customer request.
  • Butt-welded connection: EN 12627.
  • Face-to-face dimension: EN 558-1, 15 Series / 26 Series; DIN 3202 F5 / F7 Series.
  • Actuator mounting: ISO 5210.

FAQ

What is HN64 used for?

HN64 is used for industrial shut-off and pipeline isolation service, especially where the valve is normally operated fully open or fully closed.

What is the size and pressure range?

The catalog range is DN50-DN1000 with PN16 to PN100 pressure ratings. Available sizes vary by pressure rating, so final selection should follow the dimension table and project datasheet.

Can HN64 be supplied with an actuator?

Yes. Handwheel operation is common, while gearbox or electric actuator configurations may be selected according to valve size, torque and project requirement.

Is HN64 the same as HN63?

No. HN63 is a flanged gate valve in a lower pressure range. HN64 covers a wider PN16-PN100 gate valve range and includes both flanged and butt-welded connection options.
