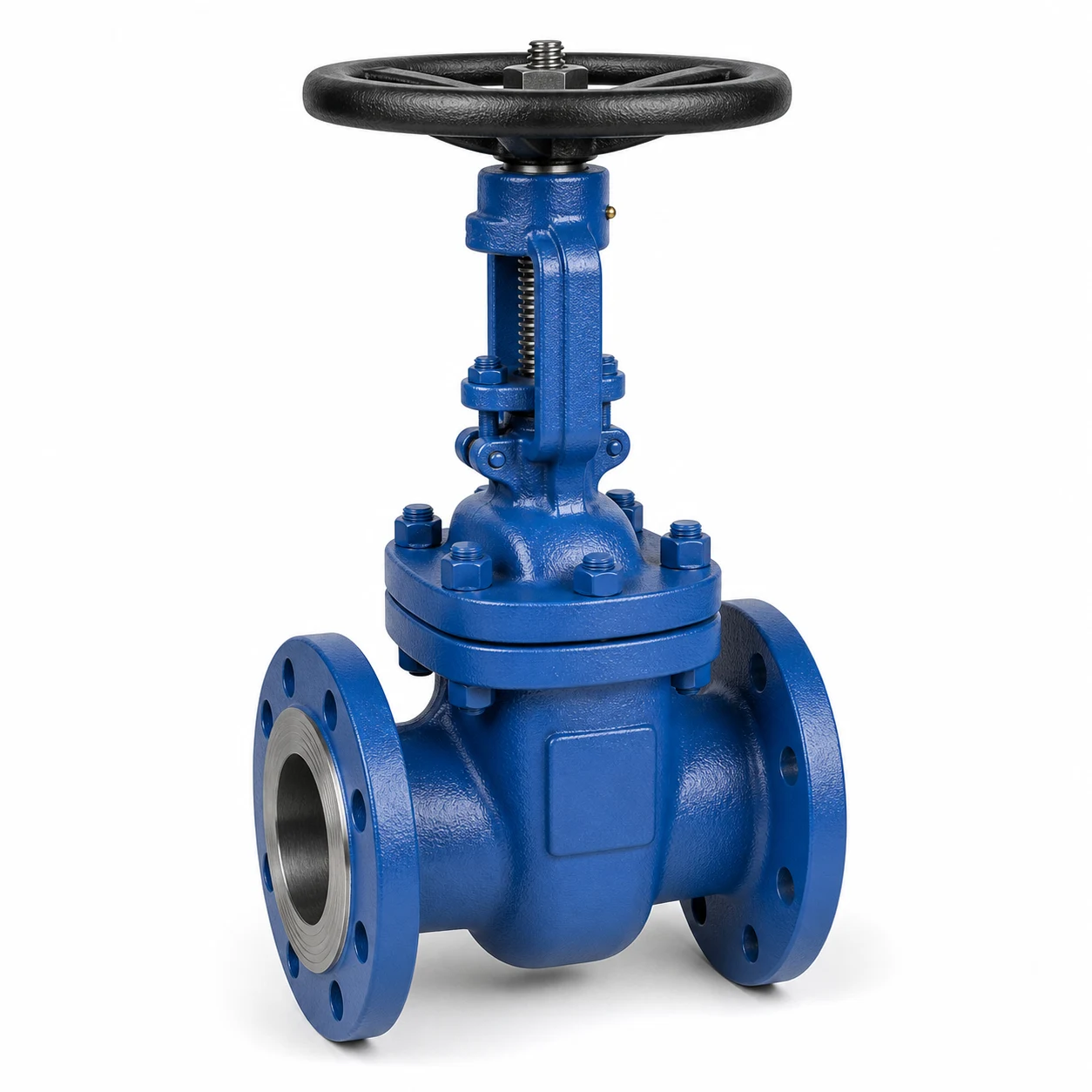

Product Overview
The HN63 Flanged Gate Valve is an EN/DIN wedge gate valve for general industrial pipeline isolation service. It is designed for fully open or fully closed operation and is not intended as a primary throttling valve.
Typical applications include industrial water, drinking water, steam, air, selected non-aggressive chemical media, petrochemical and refinery utility lines, coke-oven gas, mining service and metallurgical industry pipelines.
HN63 covers DN40 to DN1000 with PN6-PN16 service range according to the source catalog. Final selection should be confirmed according to pressure rating, medium, operating temperature, installation position and project documentation requirements.
Key Features
- Wedge gate design: Suitable for pipeline isolation where low resistance in fully open position is required.
- Rising non-rotating stem: Source catalog describes rising, non-rotating stem construction.
- Slow opening operation: Gradual stroke movement helps reduce hydraulic and thermal shock risk.
- Large size coverage: DN40-DN1000 range for water, steam, air and general industrial pipeline systems.
- Manual or actuator-ready options: Handwheel, gearbox, electric actuator and ISO 5210 actuator-ready configurations can be discussed.
Applications and Technical Description
Applications
- General industrial pipeline isolation service.
- Industrial water, drinking water, steam and air.
- Non-aggressive and non-toxic liquid and gas service.
- Petrochemical, refinery, coke chemistry, mining and metallurgical industry pipelines.
Technical Description
- Rising, non-rotating stem design.
- Designed for fully open or fully closed operation.
- Gradual valve opening helps reduce hydraulic and thermal shock risk.
Sectional Structure and Materials

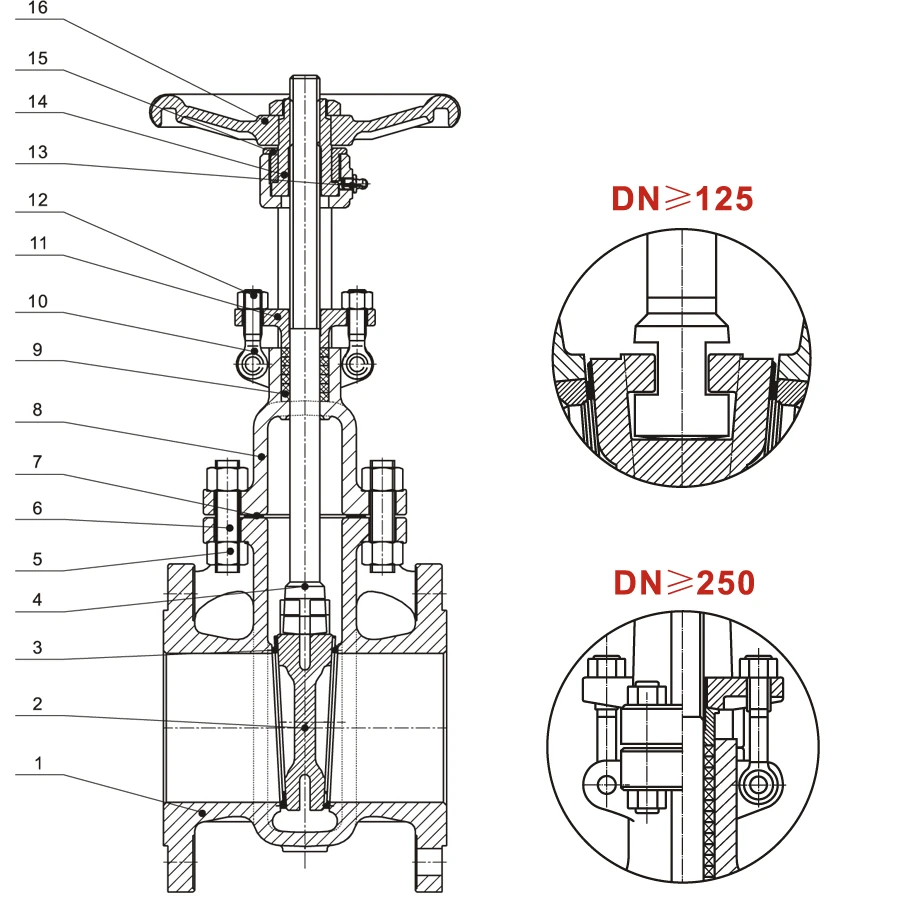

The numbered sectional drawing corresponds to the position numbers in the materials table. HN63 uses 16 numbered material positions.
| Pos. | Name | Material |
|---|---|---|
| 1 | Body | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 2 | Wedge | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 3 | Seat | 13Cr, STL6 |
| 4 | Stem | X20Cr13, F316 |
| 5 | Gasket | Graphite + stainless steel |
| 6 | Nut | ASTM A194 2H, A194 4, A194 8M or equivalent |
| 7 | Bolt | ASTM A193 B7, A193 B16, A193 B8M or equivalent |
| 8 | Bonnet | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 9 | Packing | Graphite |
| 10 | Gland | 1.0619 / A216 WCB; 1.7357 / A217 WC6; 1.4408 / A351 CF8M |
| 11 | Eyelet bolt | ASTM A193 B7, A193 B16, A193 B8M or equivalent |
| 12 | Nut | ASTM A194 2H, A194 4, A194 8M or equivalent |
| 13 | Grease nipple | Cu alloy |
| 14 | Stem nut | GGG40.3, Cu alloy |
| 15 | Screw | C.S, SS316 |
| 16 | Handwheel | C.S |
Technical Specifications
| Valve Type | Wedge gate valve |
|---|---|
| Nominal Size | DN40-DN1000 |
| Pressure Range | PN6-PN16 according to source catalog cover; dimension table shown for PN10/PN16 |
| Connection Type | Flanged according to EN 1092-1 or project requirement |
| Face-to-Face | EN 558-1, 14 Series / DIN 3202 F4 Series |
| Testing | DIN EN 12266-1; shell test nominal pressure x 1.5; seat tightness nominal pressure x 1.1 |
| Operation | Handwheel, gearbox, electric actuator, ISO 5210 actuator-ready option |
Dimensions and Performance Data

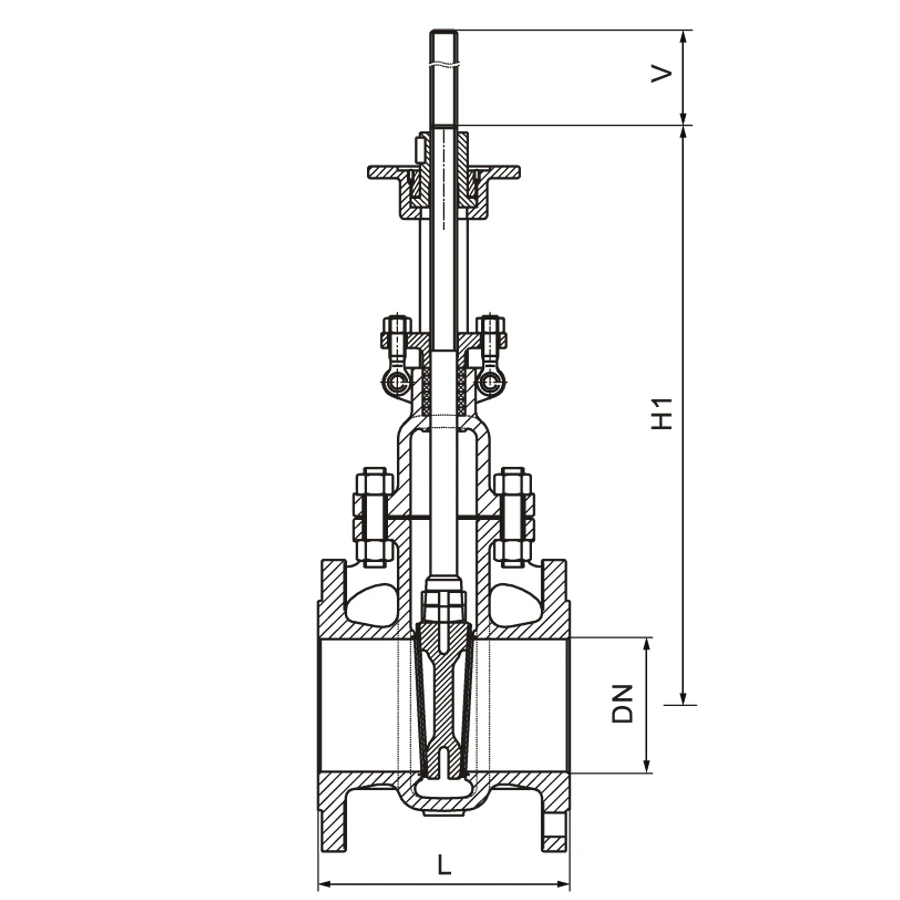

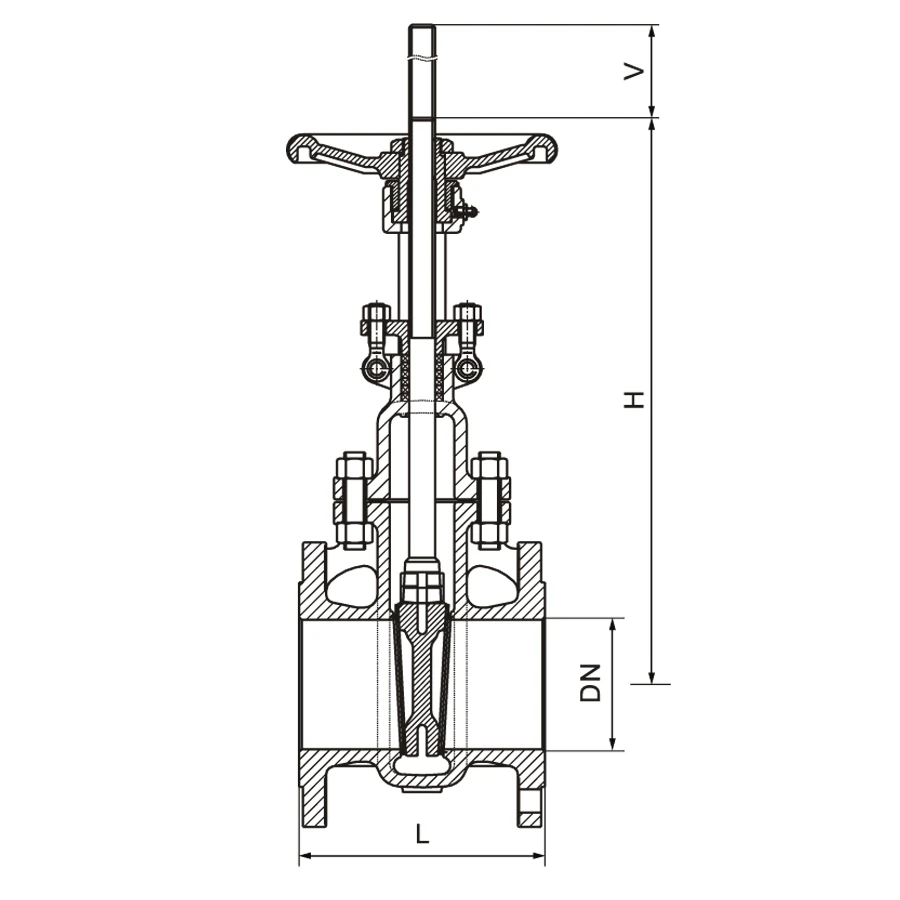

The drawings show dimensional symbols used in the table below. Values are for preliminary selection and should be confirmed against the approved datasheet before order.
| PN | DN | L, mm | H, mm | V, mm | Weight kg FL | H1, mm | Torque, Nm | Top flange ISO 5210 |
|---|---|---|---|---|---|---|---|---|
| PN10 / PN16 | 40 | 140 | 265 | 46 | 13 | 280 | 25 | F7 |
| 50 | 150 | 285 | 57 | 15 | 295 | 30 | F10 | |
| 65 | 170 | 350 | 72 | 21 | 365 | 35 | F10 | |
| 80 | 180 | 395 | 87 | 27 | 410 | 40 | F10 | |
| 100 | 190 | 460 | 108 | 32 | 480 | 55 | F10 | |
| 125 | 200 | 525 | 133 | 44 | 550 | 80 | F10 | |
| 150 | 210 | 585 | 158 | 65 | 615 | 150 | F14 | |
| 200 | 230 | 745 | 210 | 88 | 780 | 140 | F14 | |
| 250 | 250 | 870 | 260 | 125 | 910 | 210 | F14 | |
| 300 | 270 | 1040 | 312 | 155 | 1060 | 300 | F14 | |
| 350 | 290 | 1140 | 360 | 280 | 1140 | 400 | F14 | |
| 400 | 310 | 1295 | 412 | 390 | 1310 | 590 | F16 | |
| 450 | 330 | 1380 | 460 | 495 | 1400 | 710 | F25 | |
| 500 | 350 | 1535 | 512 | 600 | 1565 | 780 | F25 | |
| 600 | 390 | 2435 | 610 | 780 | 2460 | 1280 | F25 | |
| 700 | 430 | 2925 | 710 | 930 | 2970 | 2200 | F30 | |
| 800 | 470 | 3150 | 810 | 1500 | 3190 | 2500 | F30 | |
| 900 | 510 | 3670 | 910 | 1840 | 3700 | 3600 | F35 | |
| 1000 | 550 | 3900 | 1012 | 2800 | 3950 | 4700 | F35 |
Pressure-Temperature Reference
Working pressure varies by material grade and operating temperature. The following EN 12516-1 reference values are listed in MPa for preliminary selection only.
| Material | PN | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 425 | 450 | 500 | 525 | 550 | 575 | 595 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.0619 / A216 WCB | PN16 | 1.36 | 1.27 | 1.14 | 1.04 | 0.94 | 0.88 | 0.84 | – | – | – | – | – | – | – |
| 1.0619 / A216 WCB | PN25 | 2.13 | 1.98 | 1.78 | 1.62 | 1.47 | 1.37 | 1.32 | – | – | – | – | – | – | – |
| 1.0619 / A216 WCB | PN40 | 3.41 | 3.17 | 2.84 | 2.60 | 2.35 | 2.19 | 2.11 | – | – | – | – | – | – | – |
| 1.4408 / A351 CF8M | PN16 | 1.33 | 1.2 | 1.1 | 1.02 | 0.96 | 0.91 | 0.87 | 0.86 | 0.86 | 0.83 | – | – | – | – |
| 1.4408 / A351 CF8M | PN25 | 2.07 | 1.87 | 1.72 | 1.6 | 1.5 | 1.42 | 1.36 | 1.35 | 1.34 | 1.3 | – | – | – | – |
| 1.4408 / A351 CF8M | PN40 | 3.32 | 2.99 | 2.75 | 2.56 | 2.41 | 2.27 | 2.18 | 2.16 | 2.14 | 2.08 | – | – | – | – |
| 1.7357 / A217 WC6 | PN16 | 1.63 | 1.58 | 1.49 | 1.43 | 1.33 | 1.23 | 1.15 | 1.11 | 1.07 | 0.89 | 0.68 | 0.35 | 0.28 | 0.20 |
| 1.7357 / A217 WC6 | PN25 | 2.54 | 2.48 | 2.33 | 2.23 | 2.08 | 1.93 | 1.80 | 1.73 | 1.67 | 1.39 | 1.06 | 0.55 | 0.43 | 0.32 |
| 1.7357 / A217 WC6 | PN40 | 4.07 | 3.96 | 3.74 | 3.57 | 3.33 | 3.09 | 2.89 | 2.77 | 2.67 | 2.23 | 1.70 | 0.88 | 0.69 | 0.52 |
Testing, Installation and Operation
Testing
- Testing according to DIN EN 12266-1.
- Shell test reference: nominal pressure x 1.5.
- Seat tightness reference: nominal pressure x 1.1.
- Certificate of conformity according to PN-EN 10204 may be discussed based on project requirements.
Installation and Operation
- Can be installed on vertical or horizontal pipelines.
- Operate only when fully open or fully closed.
- Handwheel, electric actuator, gearbox and ISO 5210 actuator-ready options are listed in the source catalog.
Standards and Compliance
- Connection reference: EN 1092-1 flanged ends or project requirement.
- Face-to-face reference: EN 558-1, 14 Series / DIN 3202 F4 Series.
- Design reference in source catalog: PN-EN 12516-2.
- Testing reference: DIN EN 12266-1.
Actual valve configuration, material grade, actuator preparation and documentation package should be confirmed according to project requirements before order.
Frequently Asked Questions
Q: Is HN63 suitable for throttling service?
No. HN63 is a gate valve intended for isolation service and should normally be operated fully open or fully closed.
Q: How is HN63 different from HN64?
HN63 covers DN40-DN1000 and PN6-PN16 service range, while HN64 is a higher-pressure gate valve series covering PN16-PN100.
Q: Can actuator-ready versions be supplied?
Manual handwheel operation is standard. Gearbox, electric actuator and ISO 5210 actuator-ready configurations may be discussed based on project requirements.
